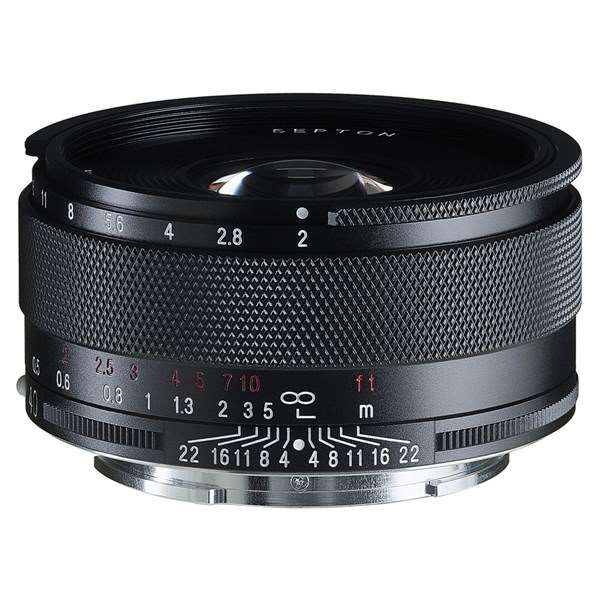

Voigtlander 40mm f/2 Septon Aspherical Lens for Sony E Mount
Product Code: 9249927Z
Share this item:
The compact Voigtlander 40mm f/2 Septon Aspherical Lens for Sony E Mount is a manual focus pancake-stye prime lens with high build and optical quality, which is suitable for everyday photography.
Pre-order today for first available UK stock. First deliveries from March.
Earn 499 Park Points
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
Voigtlander 40mm f/2 Septon Aspherical Lens for Sony E Mount Summary
The Voigtlander 40mm f/2 Septon Aspherical for Sony E is a compact, full-frame pancake-style standard prime lens made exclusively for mirrorless cameras. The name references the original Septon lenses developed for Voigtlander SLR systems in the late 1950s and 1960s.
Its optical construction consists of 7 elements in 6 groups, incorporating an aspherical element based on the Orthometar type design, which is known for short optical length and very low distortion. The lens measures 30.0mm from the mount flange and weighs 165g, maintaining a minimal profile on Sony mirrorless bodies.
Electronic contacts transmit Exif data, support 5-axis in-body image stabilisation that utilises subject distance information, and enable magnified viewfinder display via focus ring operation.
Voigtlander 40mm f/2 Septon Aspherical Lens Key Features
- Full-frame 40mm standard prime for Sony E Mount
- Compact pancake design measuring 30.0mm in length
- 7 elements in 6 groups with aspherical element
- Manual focus with mechanical aperture ring
- 10-blade diaphragm with 1/3-stop clicks
- Minimum focusing distance of 0.3m
- Maximum reproduction ratio of 1:5.3
- Electronic contacts for Exif data transmission
- Distance encoder supporting 5-axis in-body stabilisation
- Magnified viewfinder display via focus ring operation
- φ52mm filter thread
- Screw-in metal hood included
- All-metal barrel construction
Voigtlander 40mm f/2 Septon Aspherical Lens for Sony E Mount in More Detail
Optical design
The Septon 40mm f/2 Aspherical has a 6-group, 7-element design, which is derived from the Orthometar type, with the addition of an aspherical element to maintain compact dimensions while also controlling distortion. The short optical length contributes to the lens’s slimline pancake profile.
The 40mm focal length provides a 57.3° angle of view on full-frame Sony cameras. This fits between traditional 35mm and 50mm lenses, offering a natural field of view suited to general photography, which is very similar to human vision.
The 10-blade diaphragm maintains consistent aperture geometry from f/2 to f/16, while the aperture ring operates in 1/3-stop increments.
Close focusing
The minimum focusing distance is 0.3m, allowing closer framing than many standard prime lenses. The maximum reproduction ratio of 1:5.3 supports close-up compositions where the subject can fill the frame.
Electronic communication and stabilisation
The Sony E Mount version incorporates electronic contacts and a distance encoder. This enables Exif data recording and compatibility with camera bodies featuring 5-axis in-body image stabilisation that utilises subject distance information for shift blur correction.
Turning the focus ring activates magnified viewfinder display on compatible Sony bodies, assisting with precise manual focusing.
Build and handling
The barrel is constructed entirely from metal for rigidity and durability. Overall length measures 30.0mm from the mount flange, with a maximum diameter of φ61.7mm. Weight is 165g.
A 52mm filter thread accepts standard screw-in filters, and a dome-shaped screw-in metal hood is included, which keeps the lens compact.
Frequently asked questions
Does this lens have autofocus?
No, it is a manual focus lens.
Does it transmit Exif data to Sony cameras?
Yes, electronic contacts transmit lens usage information to the camera.
Does it support in-body stabilisation?
Yes, it supports 5-axis in-body stabilisation on compatible Sony bodies using subject distance information.
What is the minimum focusing distance?
The minimum focusing distance is 0.3m.
What is the angle of view?
It provides a 57.3° angle of view on full-frame cameras.
What filter size does it use?
It accepts φ52mm filters.
Is a hood included?
Yes, a screw-in metal hood is included.
What’s in the box
- Voigtlander 40mm f/2 Septon Aspherical Lens for Sony E Mount
- Screw-in metal hood
- Front lens cap
- Rear lens cap
Voigtlander 40mm f/2 Septon Aspherical Lens for Sony E Mount Specifications
|
Lens Mount |
Sony E |
|
Focal Length |
40mm |
|
Maximum Aperture |
f/2 |
|
Minimum Aperture |
f/16 |
|
Lens Construction |
6 groups 7 elements |
|
Angle of View |
57.3° |
|
Aperture Blades |
10 |
|
Minimum Focus Distance |
0.3m |
|
Maximum Reproduction Ratio |
1:5.3 |
|
Maximum Diameter |
φ61.7mm |
|
Length |
30.0mm |
|
Filter Size |
φ52mm |
|
Weight |
165g |
|
Hood |
Screw-in hood included |
|
Electrical Contacts |
Available |
