Tascam XLR Microphone Adapter for Nikon Mirrorless Cameras
Product Code: T841035T
Share this item:
The Tascam XLR Microphone Adapter for Nikon Mirrorless Cameras offers Dual XLR with HDDA preamps, analogue camera output and 48V phantom power, as well as audio controls including attenuation, limiter and low-cut.
Tascam XLR Microphone Adapter for Nikon Mirrorless Cameras Summary
The Tascam XLR Microphone Adapter for Nikon Mirrorless Cameras (CA-XLR2d-AN) is a two-channel XLR microphone adapter for Nikon mirrorless cameras, allowing external microphones to connect via XLR and record audio directly into the camera through a 3.5mm input. Audio is transmitted in analogue form and recorded alongside video.
It sits within Tascam’s camera audio range as the universal variant for cameras without a digital accessory shoe. Two XLR/TRS inputs and a 3.5mm input support microphones, wireless receivers and line-level sources.
HDDA microphone preamps provide low-noise performance with an equivalent input noise of around -120 dBu, while onboard controls include attenuation, limiter and low-cut filtering. Power is supplied via two AA batteries when used in analogue mode, supporting cameras that cannot provide power through a hot shoe connection.
Tascam XLR Microphone Adapter for Nikon Mirrorless Cameras Key Features
- Analogue audio output via 3.5mm camera connection
- Two XLR/TRS inputs with HDDA microphone preamps
- Additional 3.5mm stereo input with plug-in power
- 48V phantom power with selectable mic or line level
- Switchable attenuation, limiter and low-cut filter
- Camera or headphone output via 3.5mm jack
- Cold shoe mount for accessories or microphones
- Battery-powered operation for universal compatibility
Tascam XLR Microphone Adapter for Nikon Mirrorless Cameras In More Detail
Analogue camera connection
Audio is output via a 3.5mm stereo cable to the camera’s microphone input. This allows use with Nikon mirrorless cameras and other systems without digital audio support through the accessory shoe.
XLR inputs
Two balanced XLR/TRS inputs support microphones and line-level sources. HDDA preamps provide low-noise amplification, with selectable gain, attenuation and 48V phantom power for condenser microphones.
Auxiliary input
A 3.5mm stereo input supports lavalier microphones, wireless receivers and plug-in powered microphones. This expands compatibility with smaller or battery-powered audio systems.

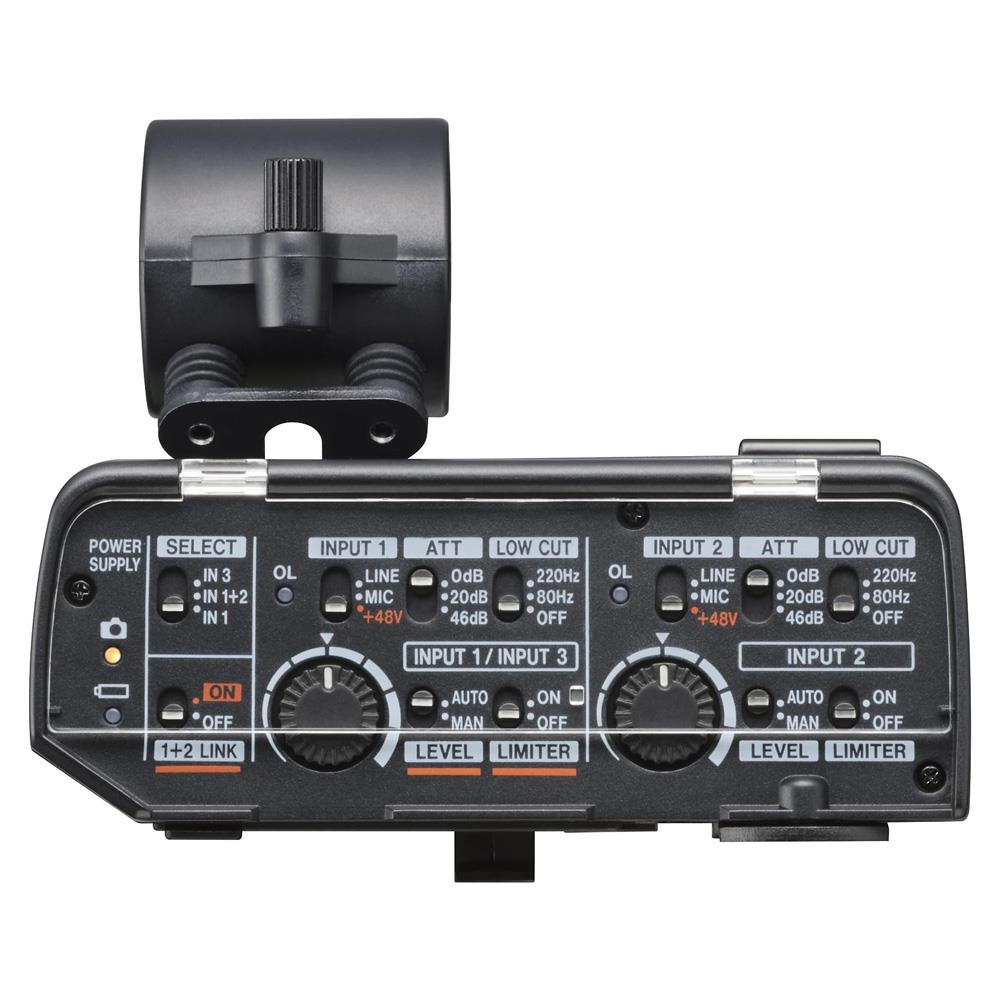

Built-in processing
Controls for low-cut filtering, limiter and auto-level are available directly on the unit. Input channels can be linked for stereo operation, allowing shared adjustment across both channels.
Monitoring and output
The 3.5mm output supports both camera output and headphone monitoring. This allows direct monitoring during recording or routing audio to the camera input.
Flexible mounting
The unit mounts via a cold shoe adapter and includes a top cold shoe for accessories. A detachable microphone holder provides support for on-camera microphones.
Battery operation
The adapter is powered by two AA batteries, supplying the preamps and phantom power. This supports use with cameras that cannot provide power through an accessory shoe.
Frequently Asked Questions
Is it compatible with Nikon mirrorless cameras?
Yes, it connects via the 3.5mm microphone input on compatible Nikon cameras.
Does it support digital audio through the hot shoe?
No, this version uses analogue output rather than digital accessory shoe audio.
Does it support phantom power microphones?
Yes, 48V phantom power is available for XLR inputs.
Can you monitor audio directly?
Yes, the 3.5mm output supports headphone monitoring.
What types of microphones can be connected?
It supports XLR microphones, line-level sources, lavalier microphones and wireless receivers.
Does it require batteries?
Yes, it operates using two AA batteries when used with analogue connections.
Tascam XLR Microphone Adapter for Nikon Mirrorless Cameras Specifications
|
Audio channels |
2 |
|
Sampling rates |
48kHz 96kHz |
|
Bit depth |
16-bit 24-bit |
|
Mic inputs |
2 x XLR/TRS combo |
|
Aux input |
3.5mm stereo mini jack |
|
Mic preamp EIN |
≤ -120 dBu |
|
Dynamic range |
≥95 dB |
|
Phantom power |
48V |
|
Output |
3.5mm stereo mini jack |
|
Power supply |
2 x AA batteries |
|
Dimensions |
88 x 119 x 110 mm |
|
Weight |
357 g |
|
Operating temperature |
0 to 40°C |
What’s in the Box
- CA-XLR2d unit
- CA-AK1-AN cold shoe mount adapter
- Battery holder
- Mic holder
- Quick guide
- 3.5mm stereo mini jack cable
