Tascam XLR Microphone Adapter for Fuji Mirrorless Cameras
Product Code: T841031T
Share this item:
The Tascam XLR Microphone Adapter for Fuji Mirrorless Cameras is a Dual XLR adapter that enables direct digital audio via accessory shoe with 48V phantom power for video creators and filmmakers.
Tascam XLR Microphone Adapter for Fuji Mirrorless Cameras Summary

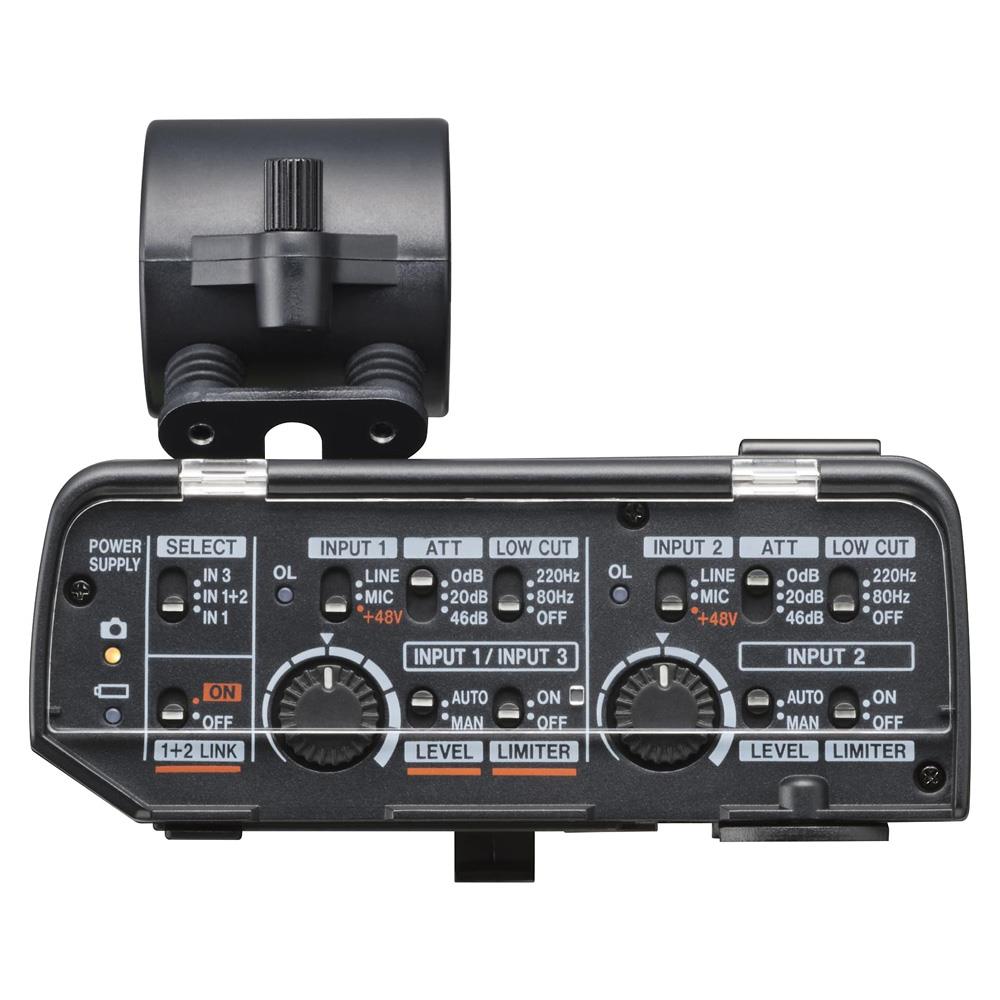

The Tascam XLR Microphone Adapter for Fuji Mirrorless Cameras (CA-XLR2d-F) is a two-channel XLR microphone adapter for Fujifilm mirrorless cameras, allowing external microphones to connect directly via the digital accessory shoe. Audio is transferred to the camera in digital form and recorded alongside video, removing the need for separate synchronisation.
It sits within Tascam’s camera audio range as a compact preamp and interface for on-camera use. Two XLR/TRS inputs and a 3.5mm input support microphones, wireless receivers and line-level sources.
HDDA preamps provide low-noise performance with an equivalent input noise of -120 dBu. Input control includes selectable attenuation, limiter and low-cut filtering. Power is supplied directly from compatible Fujifilm cameras via the accessory shoe, with battery operation available when used in analogue mode.
Tascam XLR Microphone Adapter for Fuji Mirrorless Cameras Key Features
- Digital audio transmission via Fujifilm accessory shoe
- Two XLR/TRS inputs with HDDA microphone preamps
- Additional 3.5mm stereo input with plug-in power
- 48V phantom power with selectable mic or line level
- Switchable attenuation, limiter and low-cut filter
- Camera or headphone output via 3.5mm jack
- Cold shoe mount for accessories or microphones
- Compatible with analogue cameras using included kit
Tascam XLR Microphone Adapter for Fuji Mirrorless Cameras In More Detail
Digital audio interface
Audio is transferred directly to compatible Fujifilm cameras through the accessory shoe as a digital signal. This avoids additional analogue conversion and records audio alongside video in-camera.
XLR inputs
Two balanced XLR/TRS inputs support microphones and line-level sources. Each input includes selectable gain, attenuation and phantom power at 48V for condenser microphones.
Auxiliary input
A 3.5mm stereo input supports lavalier microphones, wireless receivers and plug-in powered microphones. Plug-in power is available for compatible devices.
Built-in processing
Input signals can be managed using onboard controls for low-cut filtering, limiter and auto-level. Input channels can be linked for stereo operation, allowing shared control across both channels.
Monitoring and output
The 3.5mm output supports camera output or headphone monitoring. This allows direct monitoring during recording or routing audio to external devices.
Flexible mounting
The unit mounts via the Fujifilm accessory shoe and includes a top cold shoe for mounting microphones or wireless receivers. A detachable microphone holder provides additional support.
Analogue compatibility
With the included battery holder and 3.5mm cable, the adapter can be used with cameras that do not support digital audio through the accessory shoe, expanding compatibility beyond Fujifilm systems.
Frequently Asked Questions
Is it compatible with all Fujifilm cameras?
It is compatible with Fujifilm cameras that support digital audio via the accessory shoe, such as selected X Series models.
Can it be used with non-Fujifilm cameras?
Yes, using the included analogue kit and battery holder, it can connect via a 3.5mm input.
Does it support phantom power microphones?
Yes, 48V phantom power is available for XLR inputs.
Can you monitor audio directly?
Yes, the 3.5mm output supports headphone monitoring.
What types of microphones can be connected?
It supports XLR microphones, line-level sources, lavalier microphones and wireless receivers.
Does it require batteries?
Not when powered via a compatible Fujifilm accessory shoe. Batteries are required for analogue use.
Tascam XLR Microphone Adapter for Fuji Mirrorless Cameras Specifications
|
Audio channels |
2 |
|
Sampling rates |
48kHz 96kHz |
|
Bit depth |
16-bit 24-bit |
|
Mic inputs |
2 x XLR/TRS combo |
|
Aux input |
3.5mm stereo mini jack |
|
Mic preamp EIN |
≤ -120 dBu |
|
Dynamic range |
≥95 dB |
|
Phantom power |
48V |
|
Output |
3.5mm stereo mini jack |
|
Power supply |
camera accessory shoe or 2 x AA batteries |
|
Dimensions |
88 x 119 x 110 mm |
|
Weight |
331 g |
|
Operating temperature |
0 to 40°C |
What’s in the Box
- CA-XLR2d unit
- CA-AK1-F accessory shoe mount adapter
- CA-AK1-AN cold shoe mount adapter
- Battery holder
- Mic holder
- Quick guide
- 3.5mm stereo mini jack cable
