Tascam XLR Microphone Adapter for Canon Mirrorless Cameras
Product Code: T841029T
Share this item:
The Tascam XLR Microphone Adapter for Canon Mirrorless Cameras is a Dual XLR microphone adapter, enabling direct digital audio via accessory shoe with 48V phantom power for video creators and filmmakers.
Tascam XLR Microphone Adapter for Canon Mirrorless Cameras Summary
The Tascam XLR Microphone Adapter for Canon Mirrorless Cameras (CA-XLR2d-C) is a two-channel XLR microphone adapter for Canon mirrorless cameras, allowing external microphones to connect directly to the camera via the digital accessory shoe. Audio is transmitted digitally to the camera, avoiding additional analogue conversion.
It sits within Tascam’s camera audio range as a compact preamp and interface that mounts directly to the camera body. Two XLR/TRS inputs and a 3.5mm input support a wide range of microphones, including shotgun, lavalier and line-level sources.
High-performance HDDA preamps provide low-noise operation with an equivalent input noise of -120 dBu, while selectable attenuation, limiter and low-cut filtering allow input signals to be controlled at source. Power is supplied directly from compatible Canon cameras via the accessory shoe, removing the need for separate batteries in digital mode.
Tascam XLR Microphone Adapter for Canon Mirrorless Cameras Key Features
- Digital audio transmission via Canon accessory shoe
- Two XLR/TRS inputs with HDDA microphone preamps
- Additional 3.5mm stereo input with plug-in power
- 48V phantom power with selectable mic or line level
- Switchable attenuation, limiter and low-cut filter
- Camera or headphone output via 3.5mm jack
- Cold shoe mount for accessories or microphones
- Compatible with analogue cameras using included kit
Tascam XLR Microphone Adapter for Canon Mirrorless Cameras In More Detail
Digital audio interface
Audio is transferred directly to compatible Canon cameras through the accessory shoe as a digital signal. This removes the need for analogue cabling and avoids additional conversion stages before recording.
XLR inputs
Two balanced XLR/TRS inputs support microphones and line-level sources. Each input includes selectable gain, attenuation and phantom power at 48V for condenser microphones.
Auxiliary input
A 3.5mm stereo input allows connection of lavalier microphones, wireless receivers or plug-in powered microphones. Plug-in power is available at 2.7V.

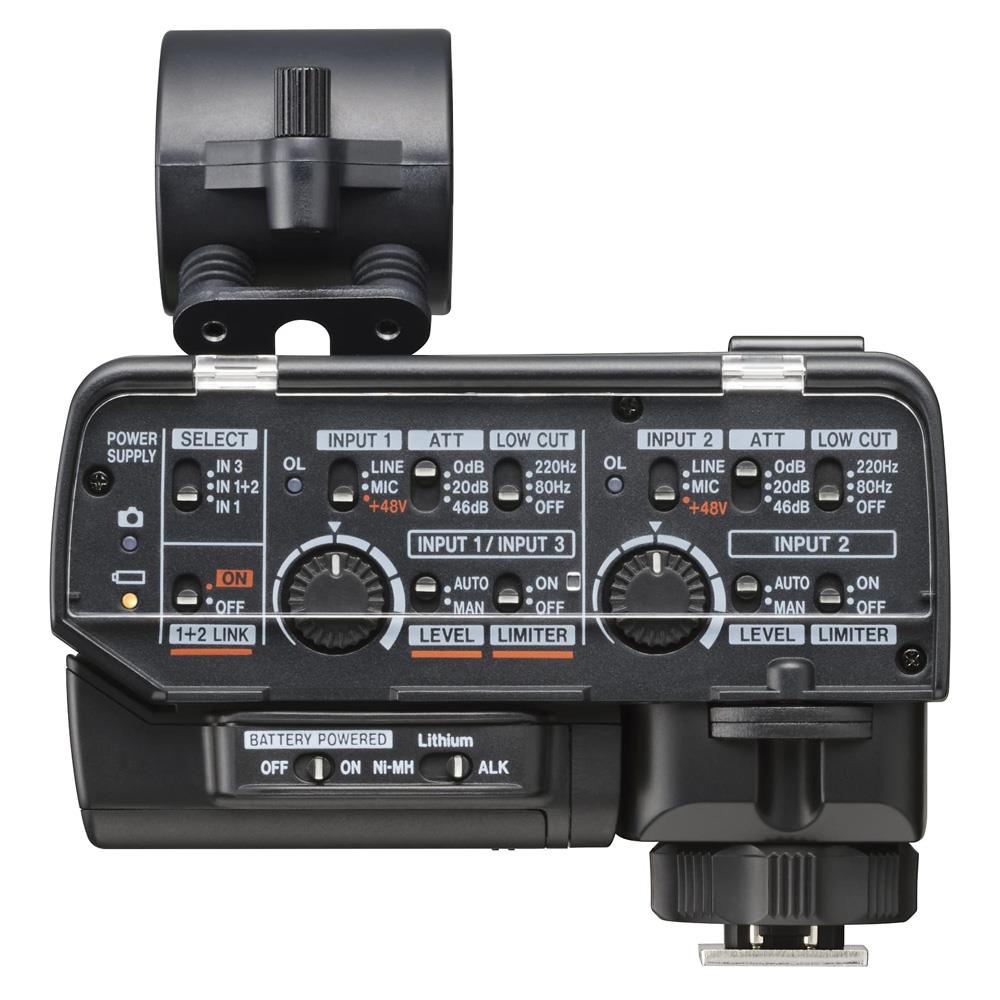

Built-in processing
Input signals can be controlled using onboard switches for low-cut filtering, limiter and auto-level. Input channels can be linked for stereo operation, allowing unified control of gain and processing.
Monitoring and output
The 3.5mm output supports two modes. Camera mode sends audio to a camera input, while headphone mode allows direct monitoring. Output level is adjustable depending on configuration.
Flexible mounting
The unit mounts directly to the camera via the accessory shoe and includes a top-mounted cold shoe for additional accessories. A detachable microphone holder with shock mount supports on-camera microphones.
Analogue compatibility
When used with the included battery holder and 3.5mm cable, the adapter can connect to cameras without a digital accessory shoe. This allows use with a wider range of cameras while retaining preamp and processing functions.
Frequently Asked Questions
Is it compatible with all Canon mirrorless cameras?
It is compatible with Canon cameras that support digital audio via the accessory shoe.
Can it be used with non-Canon cameras?
Yes, using the included analogue kit and battery holder, it can connect via a 3.5mm input.
Does it support phantom power microphones?
Yes, 48V phantom power is available for XLR inputs.
Can you monitor audio directly?
Yes, the 3.5mm output supports headphone monitoring.
What types of microphones can be connected?
It supports XLR microphones, line-level sources, lavalier microphones and wireless receivers.
Does it require batteries?
Not when used with compatible Canon cameras via the accessory shoe. Batteries are required for analogue use.
Tascam XLR Microphone Adapter for Canon Mirrorless Cameras Specifications
|
Audio channels |
2 |
|
Sampling rates |
48kHz 96kHz |
|
Bit depth |
16-bit 24-bit |
|
Mic inputs |
2 x XLR/TRS combo |
|
Aux input |
3.5mm stereo mini jack |
|
Mic preamp EIN |
≤ -120 dBu |
|
Dynamic range |
≥95 dB |
|
Phantom power |
48V |
|
Output |
3.5mm stereo mini jack |
|
Power supply |
camera accessory shoe or 2 x AA batteries |
|
Dimensions |
88 x 119 x 110 mm |
|
Weight |
341 g |
|
Operating temperature |
0 to 40°C |
What’s in the Box
- CA-XLR2d unit
- CA-AK1-C accessory shoe mount adapter
- CA-AK1-AN cold shoe mount adapter
- Battery holder
- Mic holder
- Quick guide
- 3.5mm stereo mini jack cable
