Tascam Stereo Handheld Recorder
Product Code: T841027T
Share this item:
The Tascam Stereo Handheld Recorder features 32-bit float recording, adjustable condenser microphones and USB-C interface for music, video and field recording applications.
Tascam Stereo Handheld Recorder Summary

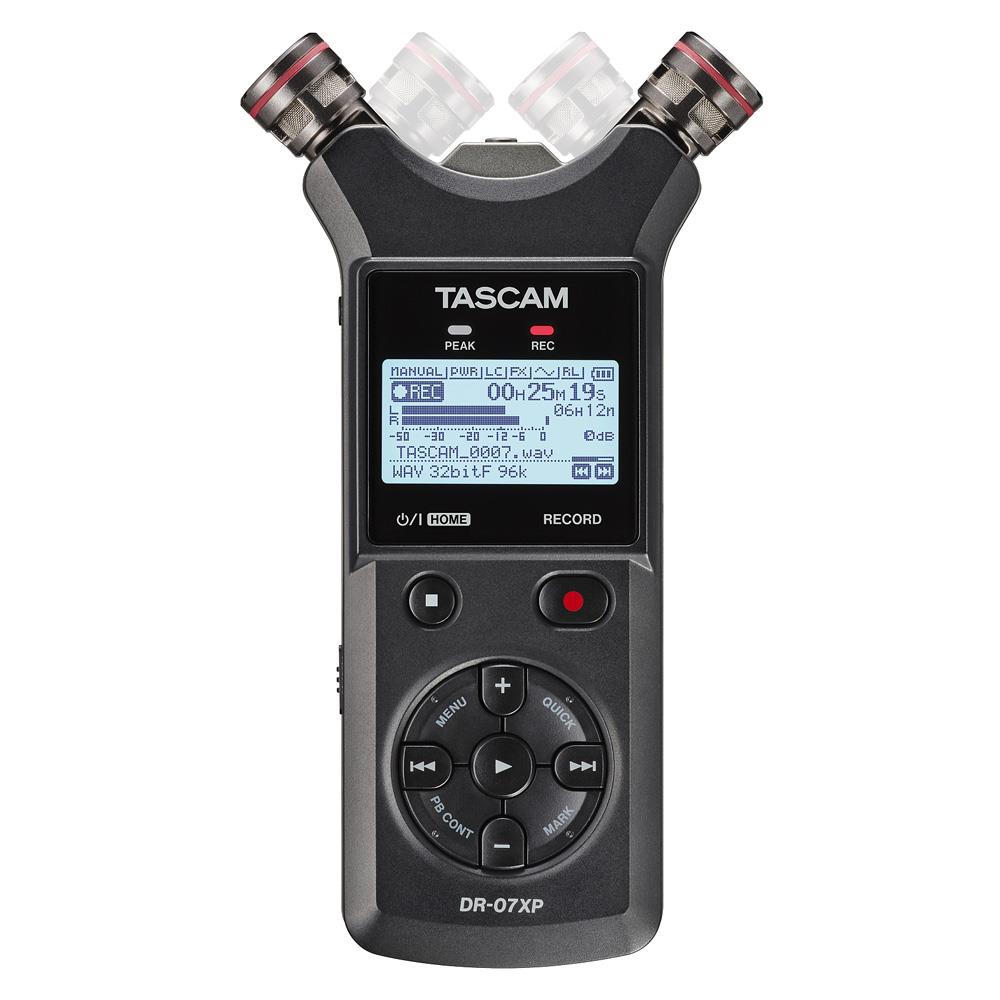

The DR-07XP is a portable stereo handheld audio recorder with built-in adjustable microphones and internal recording to microSD cards. It captures two-channel audio for music, video production, interviews and field recording.
It sits within Tascam’s handheld recorder range as a flexible option with 32-bit float recording and adjustable microphone positioning. The microphones can be configured in AB or XY layouts, allowing control over stereo width and localisation depending on the recording scenario.
Recording in 32-bit float allows levels to be adjusted after capture without clipping, reducing setup time when recording in changing environments. With support for WAV recording up to 96kHz and operation exceeding 17 hours on two AA batteries, it supports extended use across a wide range of applications including music, dialogue and ambient sound capture.
Tascam Stereo Handheld Recorder Key Features
- 32-bit float stereo recording to microSDXC cards
- Adjustable condenser microphones in AB or XY configuration
- Handles sound pressure levels up to 125 dB SPL
- 2-in/2-out USB-C audio interface
- Low-cut filter with selectable frequency settings
- Auto level, limiter and peak reduction recording modes
- Pre-record buffer and auto recording functions
- Tripod mount with built-in speaker and headphone output
Tascam Stereo Handheld Recorder In More Detail
Adjustable stereo microphones
The built-in condenser microphones can be positioned in AB or XY configurations. AB placement increases stereo width for ambient recordings, while XY provides a more focused image with improved mono compatibility.
32-bit float recording
Recording in 32-bit float preserves detail across a wide dynamic range, allowing levels to be adjusted after recording. This reduces the need to set precise input levels before capture.
Recording formats
The recorder supports WAV recording at 16-bit, 24-bit and 32-bit float with sample rates up to 96kHz. MP3 recording is also available from 32 to 320 kbit/s at 44.1 or 48kHz.
Input and external sources
A 3.5mm stereo input supports external microphones and line-level sources, including plug-in powered microphones. This allows connection of lavalier microphones or wireless receivers when required.
Recording functions
The recorder includes pre-record buffering, automatic recording triggered by input level and punch-in overwrite recording. Overdub recording allows additional layers to be added without replacing the original file.
Playback and monitoring
A built-in speaker allows quick playback, while the headphone output supports monitoring during recording. Playback controls include variable speed audition, loop playback and resume functions.
USB audio interface
The unit operates as a 2-in/2-out USB-C audio interface for Mac, Windows, iOS and Android devices. This supports recording directly into software or using the recorder as a USB microphone.
Frequently Asked Questions
Can the microphones be repositioned?
Yes, the built-in microphones can be set to AB or XY configurations.
Does it support 32-bit float recording?
Yes, it supports 32-bit float as well as 24-bit and 16-bit recording.
Who is it suitable for?
It suits musicians, videographers, students and creators recording interviews, music and field audio.
Can external microphones with a 3.5mm jack be connected?
Yes, a 3.5mm stereo input supports external microphones and line-level sources.
Can it be used as a USB microphone?
Yes, it can operate as a USB audio interface with compatible devices.
Does it include a built-in speaker?
Yes, it has a mono speaker for playback.
Tascam Stereo Handheld Recorder Specifications
|
Recording media |
microSD microSDHC microSDXC up to 512GB |
|
Recording formats |
WAV 44.1kHz 48kHz 96kHz 16-bit 24-bit 32-bit float MP3 32 to 320 kbit/s |
|
Input channels |
2 (stereo) |
|
Recording tracks |
2 (stereo) |
|
Built-in microphones |
stereo condenser adjustable AB or XY |
|
Maximum SPL |
125 dB |
|
External input |
3.5mm stereo mini jack |
|
Headphone output |
3.5mm stereo mini jack |
|
USB |
USB-C USB 2.0 |
|
USB audio interface |
2-in/2-out |
|
Frequency response |
20Hz to 20kHz (44.1kHz) |
|
Power supply |
2 x AA batteries USB bus power optional AC adapter |
|
Dimensions |
68 x 160 x 27 mm (XY) 90 x 160 x 27 mm (AB) |
|
Weight |
184 g with batteries |
|
Operating temperature |
0 to 40°C |
What’s in the Box
- Tascam Stereo Handheld Recorder
- Safety guide
- Tascam ID registration guide
