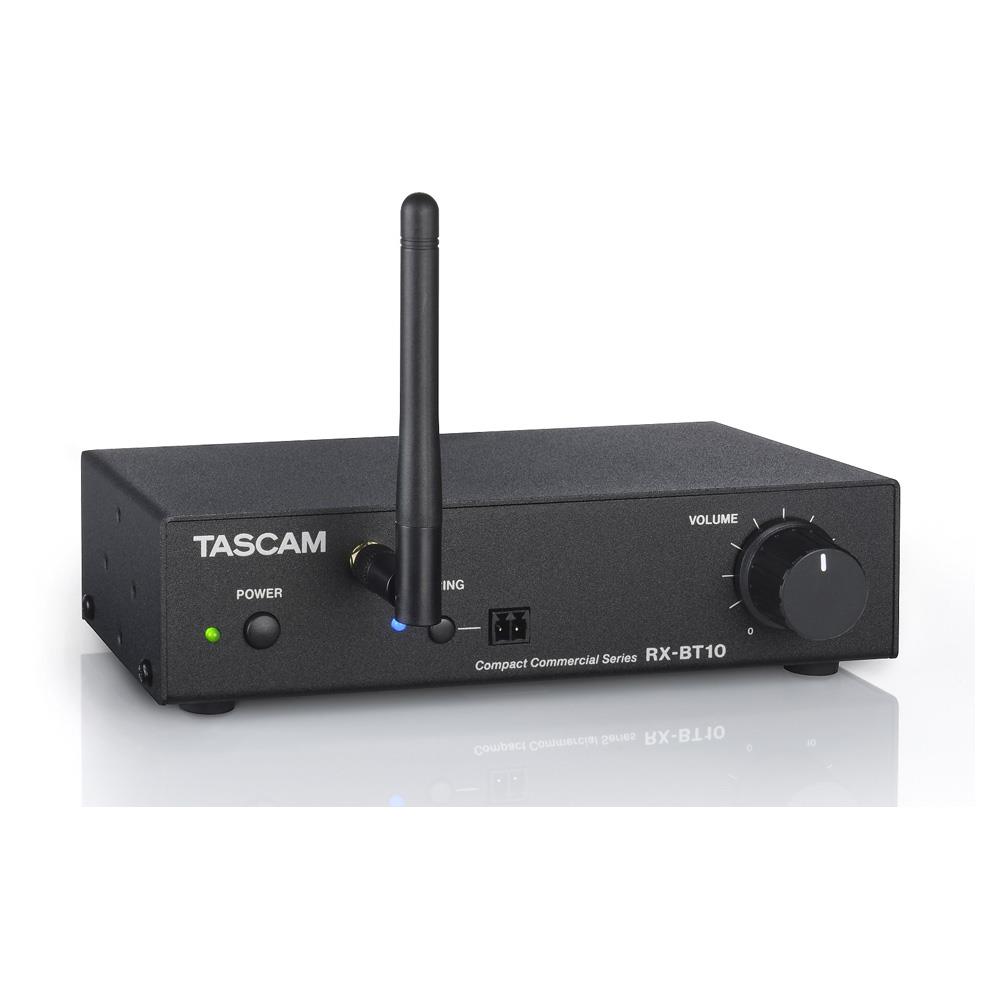

Tascam RX-BT10 Professional Bluetooth Audio Receiver
Product Code: T841041T
Share this item:
The Tascam RX-BT10 Professional Bluetooth Audio Receiver for installed and live sound systems, enables wireless playback with XLR and RCA outputs, Class 1 range and multi-device pairing for integrators and venues.
Tascam RX-BT10 Professional Bluetooth Audio Receiver Summary
The RX-BT10 is a professional Bluetooth audio receiver for adding wireless audio playback to installed and portable sound systems. It receives audio from smartphones, tablets and other Bluetooth devices and outputs analogue audio via balanced XLR or unbalanced RCA connections.
It sits within Tascam’s installation audio range as a compact receiver with extended wireless range, multiple device management and flexible mounting options. Bluetooth 5.1 Class 1 supports long-distance connectivity, while the unit stores pairing information for up to eight devices and allows up to three devices to remain connected at the same time.
With front-panel level control, switchable stereo or mono output and support for both fixed and mobile installations, it integrates into a wide range of environments including venues, conference spaces and commercial installations.
Tascam RX-BT10 Receiver Key Features
- Bluetooth 5.1 Class 1 receiver with long-range connectivity
- Balanced XLR and unbalanced RCA outputs
- Stores pairing for up to eight devices
- Supports connection of up to three devices simultaneously
- Detachable antenna extendable up to 20 metres
- External pairing button support for remote installation
- Front-panel output level control
- Stereo or mono output switching
Bluetooth connectivity
The receiver uses Bluetooth 5.1 with Class 1 output, supporting stable wireless connections over longer distances. In unobstructed environments, this can reach up to 100 metres, depending on surrounding conditions and connected devices.
Multi-device management
The unit stores pairing data for up to eight devices and allows up to three devices to remain connected simultaneously. Each unit uses a unique Bluetooth ID, which allows multiple receivers to operate in the same installation without confusion between devices.
Audio outputs
Balanced XLR outputs and unbalanced RCA outputs allow integration with professional and consumer audio systems. Output levels differ depending on connection type, with XLR supporting higher signal levels for professional equipment.
Output control
A front-panel level control allows adjustment of output volume without accessing the connected device. A rear-panel switch selects stereo or mono output, allowing compatibility with different sound system configurations.
Installation flexibility
The receiver includes mounting points on the top and bottom panels, allowing it to be fixed under desks, on shelves or within equipment racks. The included bracket kit supports secure installation in permanent setups.
Expandable antenna and pairing control
The detachable antenna can be extended up to 20 metres to improve reception in installations where the receiver cannot be positioned near the source device. An external pairing button can also be connected, allowing pairing control from an accessible location.
Mobile and fixed use
The compact metal chassis supports both portable and installed use. It can be used in temporary setups such as events and presentations, or integrated into fixed systems in venues, retail environments and meeting rooms.
Rack installation
An optional AK-RS1 accessory allows two units to be mounted side by side in a rack, supporting larger installations where multiple Bluetooth inputs are required.
Frequently Asked Questions
Can it connect to multiple devices at the same time?
Yes, up to three devices can be connected simultaneously, with pairing stored for up to eight devices.
What is the maximum Bluetooth range?
Up to approximately 100 metres in unobstructed conditions, depending on environment and device type.
Is it suitable for professional audio systems?
Yes, it includes balanced XLR outputs for integration with professional audio equipment.
Can it be installed permanently?
Yes, it includes mounting points and brackets for fixed installation in commercial and venue environments.
Does it support stereo and mono output?
Yes, output can be switched between stereo and mono depending on the system setup.
Can the antenna be repositioned?
Yes, the antenna is detachable and can be extended up to 20 metres for improved reception.
Tascam RX-BT10 Professional Bluetooth Audio Receiver Specifications
|
Bluetooth version |
5.1 |
|
Bluetooth class |
Class 1 |
|
Supported profiles |
A2DP AVRCP |
|
Supported codecs |
SBC AAC |
|
Range |
up to 100 m (unobstructed) |
|
Unbalanced output |
RCA connectors |
|
Unbalanced max output level |
+6 dBV |
|
Unbalanced nominal level |
−10 dBV |
|
Unbalanced output impedance |
≤100 Ω |
|
Balanced output |
XLR female connectors |
|
Balanced max output level |
+14 dBu |
|
Balanced nominal level |
−2 dBu |
|
Balanced output impedance |
≤200 Ω |
|
Frequency response |
20Hz to 20kHz +0.5/−1 dB |
|
THD+N |
≤0.04 % |
|
Signal-to-noise ratio |
≥90 dB |
|
Channel separation |
≥100 dB |
|
Power supply |
Tascam PS-M1524 AC adapter |
|
Input voltage |
AC 100–240 V |
|
Output voltage |
DC 15 V |
|
Power consumption |
1.7 W |
|
Dimensions |
171 x 45 x 73 mm |
|
Weight |
530 g |
|
Operating temperature |
0 to 40°C |
What’s in the Box
- Tascam RX-BT10 Professional Bluetooth Audio Receiver
- AC adapter (TASCAM PS-M1524)
- Bluetooth antenna
- Euroblock plug
- Installation bracket kit
- Safety guide
- Tascam ID registration guide
