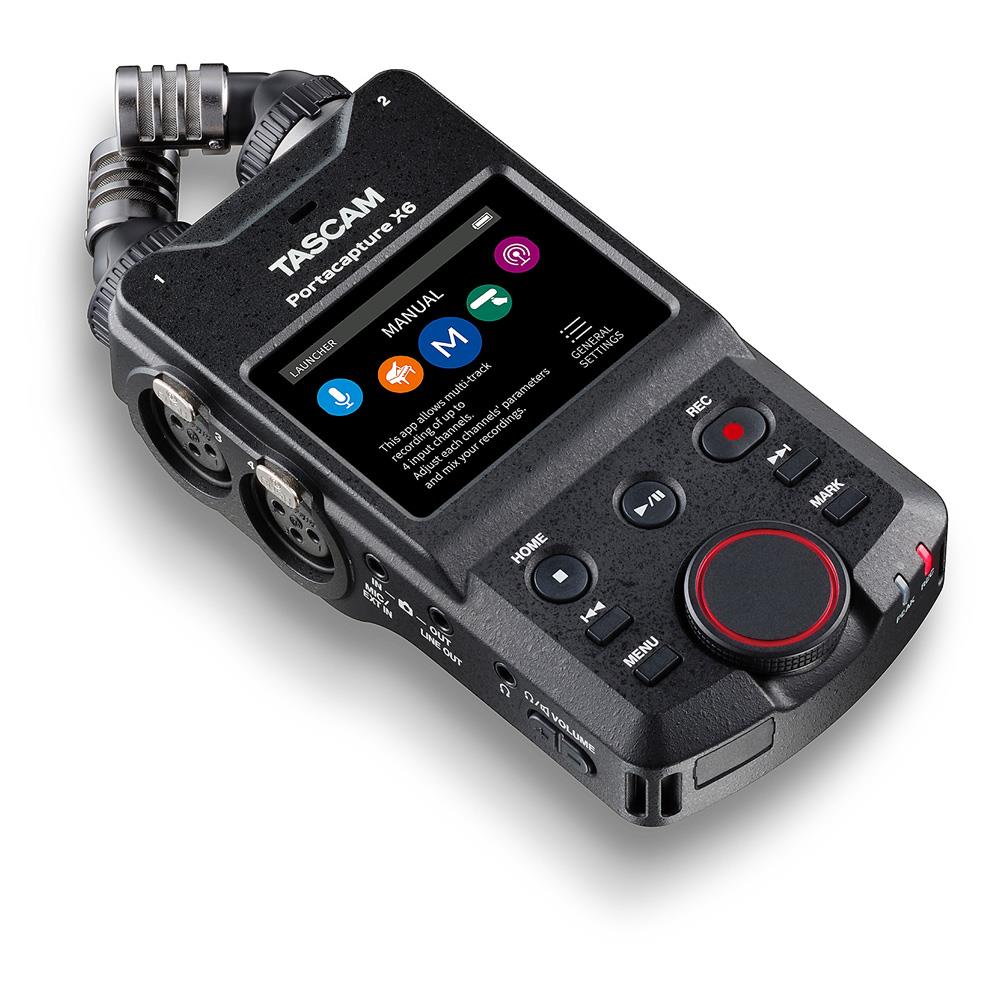

Tascam Portacapture X6 High-Resolution Multi-Track Handheld Recorder
Product Code: T841037T
Share this item:
The Tascam Portacapture X6 High-Resolution Multi-Track Handheld Recorder is a 6-track audio recorder for video, music and field recording, with 32-bit float audio, XLR, touchscreen control and USB interface for creators.
Tascam Portacapture X6 High-Resolution Multi-Track Handheld Recorder Summary
The Portacapture X6 is a high-resolution multi-track handheld audio recorder with built-in microphones, XLR inputs and touchscreen operation. It records up to six tracks simultaneously to microSD media, combining portable recording with multichannel capability.
It sits within Tascam’s portable recorder range as a touchscreen-based system with app-style operation and 32-bit float recording. Two built-in microphones and two XLR inputs support both quick capture and more controlled recording setups.
Recording at up to 96kHz in 32-bit float allows levels to be adjusted after capture without clipping. A built-in mixer, processing tools and multiple recording apps support a range of workflows including video production, podcasting, music recording and field capture.
Tascam Portacapture X6 Recorder Key Features
- 6-track recording with four inputs plus stereo mix
- 32-bit float recording up to 96kHz
- 2.4-inch colour touchscreen with launcher system
- Adjustable condenser microphones in AB or XY configuration
- Two XLR mic/line inputs with phantom power
- 6-in/2-out USB-C audio interface with internal recording
- Multiple recording apps with preset workflows
- Optional Bluetooth control and wireless timecode sync
Tascam Portacapture X6 Handheld Recorder In More Detail
App-based recording system
The touchscreen interface uses a launcher system with dedicated recording apps. Each app applies optimised settings for different scenarios, reducing setup time and simplifying operation in the field.
Available recording apps include:
- MANUAL for full multi-track control
- VOICE for interviews, meetings and dictation
- PODCAST for up to four voices with mix-minus support
- MUSIC for instrument and vocal recording
- POCKET STUDIO for short multitrack recording with punch-in
- FIELD for environmental and location recording
- ASMR with visual feedback based on input signal
32-bit float recording
The recorder captures audio in 32-bit float, allowing recordings to retain detail across a wide dynamic range. Levels can be adjusted after recording without clipping, which supports unpredictable recording conditions.
Built-in microphones
The integrated condenser microphones can be rotated between AB and XY configurations. AB provides a wider stereo image, while XY improves mono compatibility and localisation.
Inputs and track count
The unit records four input channels and a stereo mix simultaneously, giving six tracks in total. Inputs include the built-in microphones and two XLR connectors for external microphones or line-level sources.
Mic preamps and phantom power
The XLR inputs use Tascam HDDA preamps with low-noise performance. Phantom power at 24V or 48V can be applied individually, supporting condenser microphones and professional audio sources.
Additional connections
A 3.5mm stereo input allows connection of wireless receivers, cameras or external microphones with plug-in power. A 3.5mm output can send audio to a camera or external device with selectable attenuation.
Built-in processing
The recorder includes EQ, low-cut filter, compressor, limiter, noise gate and auto gain control. Reverb effects and MS decoding are available, and markers can be added automatically or manually. XRI metadata stores recording settings within BWF files.
USB audio interface
The X6 operates as a 6-in/2-out USB-C audio interface. It supports recording directly to a computer or mobile device while also allowing input signals to be recorded to SD card. Mix-minus is available in podcast workflows.
Wireless control and timecode
With the optional AK-BT1 adapter, the recorder supports wireless control via a mobile app and timecode synchronisation with compatible Atomos devices.
Firmware features
Firmware updates add workflow improvements. Version 1.10 introduced 32-bit float USB audio, mix-minus in the PODCAST app and shared presets. Version 2.0 added the POCKET STUDIO app, real-time mixdown and buffered background recording in the FIELD app.
Comparison of X6 and X8 model features
|
Model |
Portacapture X6 |
Portacapture X8 |
|
Number of input channels |
4 (built-in stereo mic (1-2), IN 3-4) IN 3-4: XLR |
6 (built-in stereo mic (1-2), IN 3-6) IN 3-6: XLR/TRS Combo |
|
Max. sampling rate / resolution |
96 kHz / 32-bit float |
192 kHz / 32-bit float |
|
Built-in microphones |
A-B / true X-Y Built-in (non detachable), rotatable 10-mm diameter diaphragm |
A-B / true X-Y Detachable 14.6-mm diameter diaphragm |
|
Lavalier mic connection |
Support plug-in power (EXT IN, mono/stereo) |
Support plug-in power (IN 1-2) EXT IN does not support plug-in power |
|
Display |
2.4-inch (6-cm) full-colour touchscreen LCD Launcher app system |
3.5-inch (8.9-cm) full-colour touchscreen LCD Launcher app system |
|
Maximum simultaneous recording tracks |
6 (4 tracks plus stereo mix) |
8 (6 tracks plus stereo mix) |
|
Audio interface |
44.1 / 48 / 96 kHz 24-bit, 32-bit float (from v1.10) 6-in / 2-out USB audio I/F mode + internal recording |
44.1 / 48 / 96 kHz 24-bit, 32-bit float 8-in / 2-out USB audio I/F mode + internal recording |
|
Dimensions (W × D × H) |
75 mm × 37 mm × 174 mm |
83 mm × 42 mm × 206 mm |
|
Weight (with/without batteries) |
365/265 g |
472/381 g |
Frequently Asked Questions
How many tracks can it record at once?
It records up to six tracks, including four inputs and a stereo mix.
Does it support 32-bit float recording?
Yes, it supports 32-bit float recording up to 96kHz.
Can it be used as a USB audio interface?
Yes, it works as a 6-in/2-out USB-C audio interface and supports internal recording at the same time.
What microphones can be connected?
It includes built-in microphones and two XLR inputs for external microphones, plus a 3.5mm input for additional sources.
Is it suitable for video production?
Yes, camera input and output connections, slate tones and optional timecode sync support video workflows.
Portacapture X6 vs Portacapture X8?
The X8 adds four XLR/TRS inputs instead of two, supports up to 192kHz recording, includes detachable larger microphones and records up to eight tracks instead of six. The X6 is smaller and lighter, with fewer inputs but the same app-based workflow and 32-bit float recording.
Can it be controlled remotely?
Yes, with the optional Bluetooth adapter it can be controlled via the Portacapture Control app.
Tascam Portacapture X6 High-Resolution Multi-Track Handheld Recorder Specifications
|
Recording media |
microSD microSDHC microSDXC up to 512GB |
|
Recording formats |
WAV BWF 44.1kHz 48kHz 96kHz 16-bit 24-bit 32-bit float MP3 44.1kHz 48kHz |
|
Input channels |
4 |
|
Recording tracks |
6 (4 inputs + stereo mix) |
|
Built-in microphones |
stereo condenser adjustable AB or XY |
|
Mic inputs |
2 x XLR/TRS combo |
|
Mic preamp EIN |
≤ -125 dBu |
|
Dynamic range |
≥112 dB |
|
Aux input |
3.5mm stereo mini jack |
|
Line output |
3.5mm stereo mini jack |
|
Headphone output |
3.5mm stereo mini jack |
|
USB |
USB-C USB 2.0 |
|
USB audio interface |
6-in/2-out |
|
Display |
2.4-inch colour touchscreen |
|
Power supply |
4 x AA batteries USB bus power optional AC adapter |
|
Dimensions |
75 x 37 x 174 mm |
|
Weight |
365 g with batteries |
|
Operating temperature |
0 to 40°C |
What’s in the Box
- Tascam Portacapture X6 High-Resolution Multi-Track Handheld Recorder
- Safety guide
- Tascam ID registration guide
