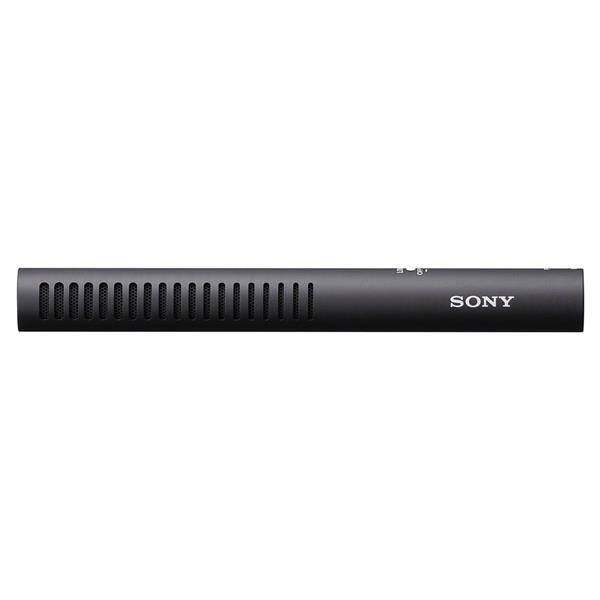

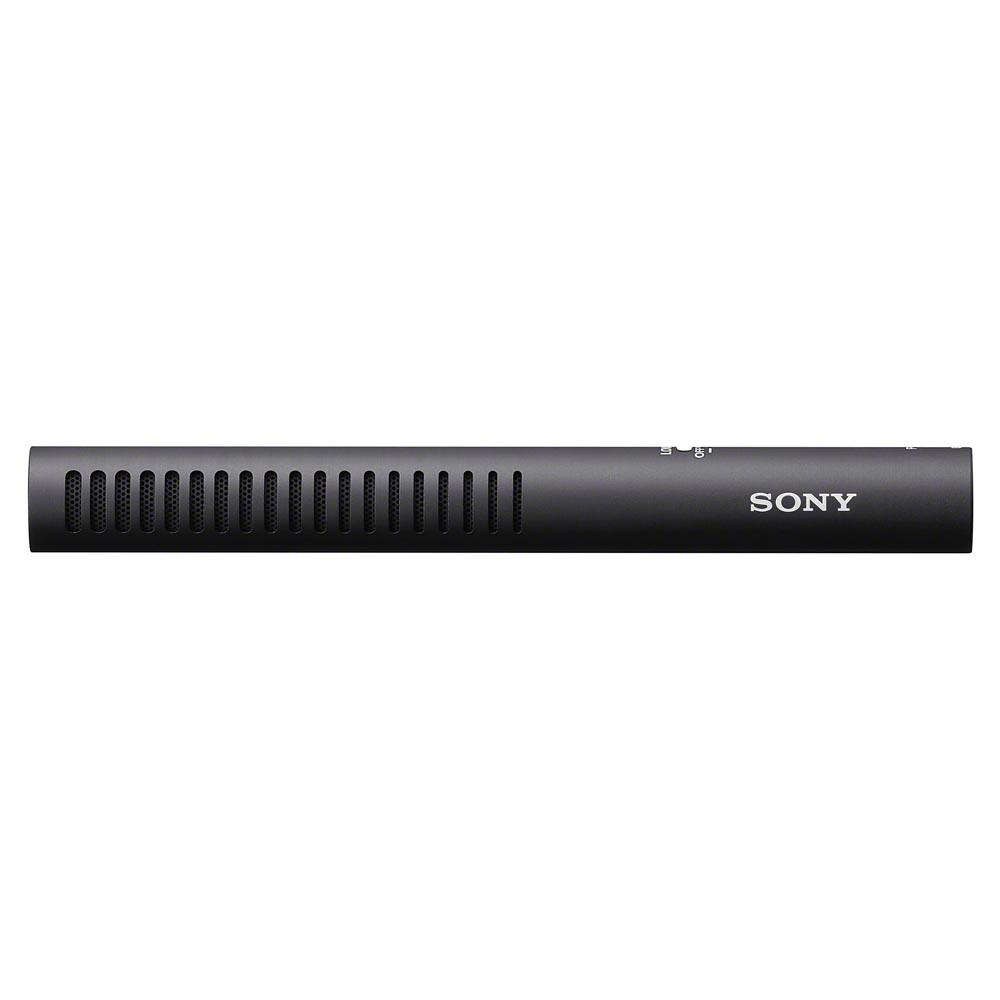

Sony XLR Shotgun Microphone ECM-778
Product Code: 7680124T
Share this item:
The Sony XLR Shotgun Microphone ECM-778 is a compact and lightweight broadcast-quality mic with a highly directional supercardioid polar pattern that is ideal for mounting on-camera and on boom poles.
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
Sony XLR Shotgun Microphone ECM-778 Summary
The Sony XLR Shotgun Microphone ECM-778 is a compact XLR shotgun microphone that captures broadcast-quality sound for video, film and location recording. With a highly directional supercardioid polar pattern and extended high-frequency response up to 40kHz, it captures crisp, clear dialogue while effectively rejecting ambient and off-axis noise. This makes it well suited for use on a boompole or mounted directly to a camera.
This XLR microphone is ultra compact too, measuring just 176mm and weighing in at only 102g, allowing the ECM-778 to be easily mounted to a compact boom or camera setup, while its machined aluminium and brass construction ensures high durability and low susceptibility to environmental interference. The robust housing reduces handling noise and vibration, and includes a switchable low-cut filter to help control r wind or operator movement at the source.
The mic is powered via standard 48V phantom power and outputs through a balanced XLR 3-pin connector. A full accessory kit is included with foam and fur windscreens, a microphone holder and two spacers for mounting flexibility, along with a hard case for storage and transport.
Sony XLR Shotgun Microphone ECM-778 Key Features
- Broadcast-quality shotgun microphone with XLR output and supercardioid directivity
- High-resolution frequency response from 40Hz to 40kHz for natural, spacious audio
- Compact and lightweight at just 176mm long and 102g for boom or on-camera
- Robust machined aluminium and brass construction with built-in low-cut filter
- Excellent off-axis rejection and high sensitivity (-31dB) for clear dialogue recording
- Supports 48V phantom power via standard XLR 3-pin connection
Sony XLR Shotgun Microphone ECM-778 in More Detail
Professional Sound Capture
The ECM-778 captures accurate audio with a wide frequency response of 40Hz–40kHz. Its supercardioid polar pattern provides focused front pick-up with effective rejection of ambient noise, which is ideal for recording dialogue in both controlled, and outdoor settings.
Compact Field-Ready Design
At just 176mm long and 102g, this Sony XLR microphone is highly portable and fits easily on camera rigs or boom poles and its compact size is well suited to working in smaller sets, vehicles or interiors.
Durable and Vibration-Resistant
The microphone body is made from machined aluminium, with a brass acoustic tube that helps to maintain tonal stability. This structure suppresses vibration and minimises interference from electrical noise or environmental elements.
Low-Cut Filter and Reliable Power
A low-cut filter switch on the body enables quick reduction of low-frequency handling and wind noise. The ECM-778 is powered via standard 44-52V phantom power and connects using a professional XLR 3-pin output for consistent signal transmission.
What’s in the box
- Sony XLR Shotgun Microphone ECM-778
- Foam Wind Screen
- Fur Wind Screen
- Microphone Holder
- Microphone Spacer (moulded type)
- Microphone Spacer (sheet type)
- Microphone Cable
- Storage Case
- Stand Adaptors x2
- Warranty and Operating Instructions
Sony XLR Shotgun Microphone ECM-778 Specifications
|
Microphone Type |
Electret condenser (monaural) |
|
Polar Pattern |
Supercardioid |
|
Frequency Response |
40Hz to 40kHz |
|
Front Sensitivity |
-31 dB (0 dB = 1V/Pa, 1kHz) |
|
Signal-to-Noise Ratio |
78 dB or more (A-weighted) |
|
Intrinsic Noise |
16 dB SPL or less |
|
Max Input Sound Pressure Level |
133 dB SPL (1% distortion), 136 dB SPL (10% distortion) |
|
Dynamic Range |
117 dB SPL or more |
|
Output |
XLR 3-pin |
|
Output Impedance |
40 ohm |
|
Power Requirements |
44–52V DC phantom power (IEC 61938 P48) |
|
Current Consumption |
4 mA or less |
|
Operating Temperature |
0°C to +60°C |
|
Dimensions (Main Unit) |
20mm diameter x 176mm length |
|
Weight (Main Unit) |
Approx. 102g |
