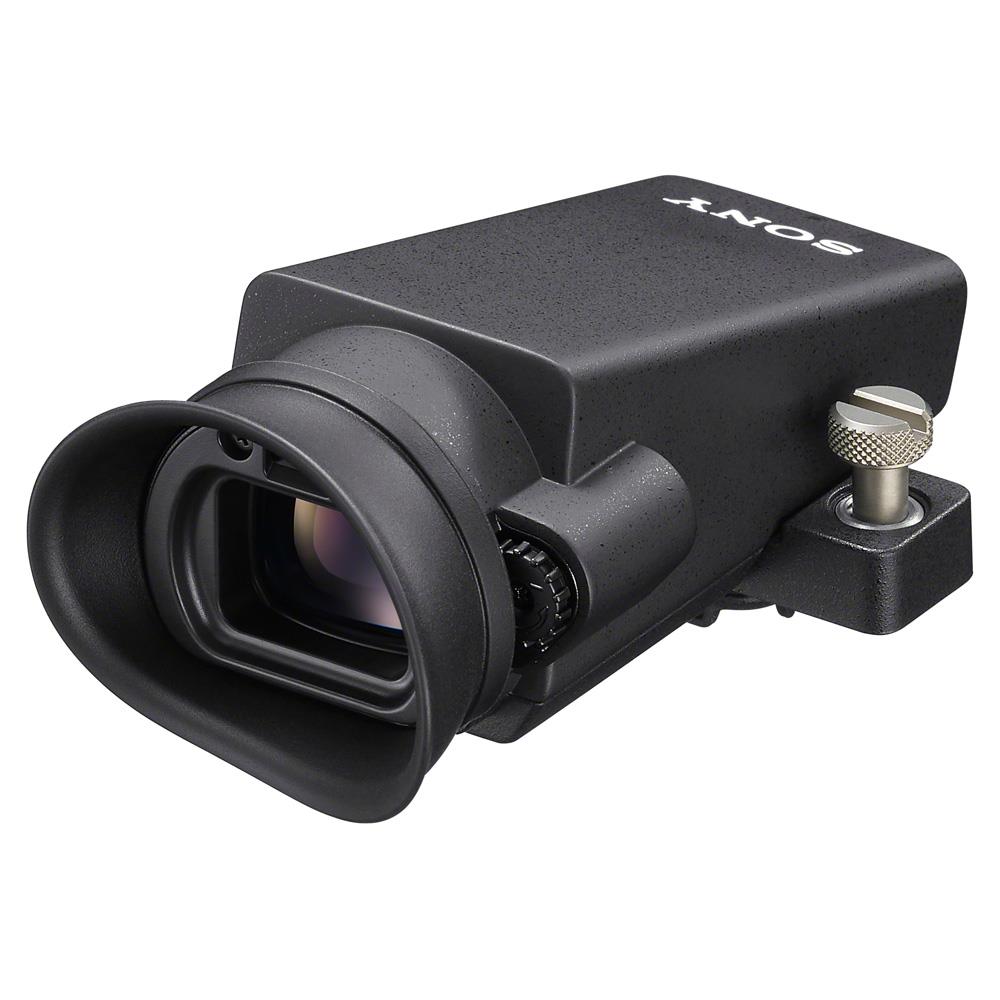

Sony FX5 Electronic Viewfinder
Product Code: 7680127V
Share this item:
The Sony FX5 Electronic Viewfinder adds a removable 3.68-million-dot OLED display with up to 2500cd/m² brightness, HDR support and a 0°–90° tilting design for confident eye-level monitoring outdoors and handheld filmmaking.
Pre-order today for first available UK stock. First deliveries from early Aug.
Earn 649 Park Points
Key Features
- Removable OLED electronic viewfinder for the Sony FX5
- 3.68-million-dot OLED display
- Up to 2500cd/m² brightness for daylight viewing
- HDR, 10-bit and wide colour gamut monitoring
- Tilts from 0° to 90° for flexible shooting positions
- Improves handheld stability through eye-level operation
- Removable design for lightweight or gimbal configurations
- Complements the FX5’s 3.5-inch four-axis LCD monitor
Sony FX5 Electronic Viewfinder Summary
The Sony FX5 Electronic Viewfinder expands the FX5’s monitoring capabilities with a removable 3.68-million-dot OLED display for productions where the rear LCD is difficult to view. Supporting HDR, 10-bit and wide colour gamut monitoring with brightness up to 2500cd/m², it provides a clear eye-level image in bright outdoor conditions while improving camera stability during handheld operation.
Its adjustable design tilts from 0° to 90° for comfortable viewing at waist level, overhead or when working on shoulder rigs and other production configurations. The removable construction allows filmmakers to switch between a compact gimbal setup using the 3.5-inch four-axis LCD and an eye-level viewing experience better suited to documentary, broadcast and location filmmaking.
Sony FX5 Electronic Viewfinder In More Detail
Professional Eye-level Monitoring
The Sony FX5 Electronic Viewfinder provides an alternative to the camera’s rear LCD for productions where ambient light, camera position or operating style make eye-level viewing preferable. By bringing the camera into contact with the operator, it also provides an additional point of stability during handheld shooting while making composition and focus easier to judge in challenging lighting conditions.
High-resolution OLED Display
The viewfinder features a 3.68-million-dot OLED panel supporting HDR, 10-bit and wide colour gamut monitoring with brightness up to 2500cd/m². The high-contrast display remains easier to view than the rear monitor in direct sunlight, supporting confident assessment of exposure, colour and focus.
Adjustable Viewing Position
A tilting mechanism provides adjustment from 0° to 90°, allowing comfortable viewing when filming at waist level, overhead, on tripods or from shoulder-mounted rigs. This flexibility reduces operator fatigue while maintaining a natural viewing position across a wide range of production scenarios.
Flexible Camera Configuration
The Electronic Viewfinder can be fitted or removed to suit different styles of production. It can be fitted for documentary, ENG and outdoor filming where eye-level monitoring is beneficial, or removed to maintain the compact dimensions preferred for gimbal work, vehicle rigs and lightweight handheld operation.
Frequently Asked Questions
Do I need the Electronic Viewfinder if the FX5 already has an LCD?
Not necessarily. The FX5's 3.5-inch four-axis LCD is suitable for many productions, while the EVF provides a brighter eye-level viewing option that is easier to use in strong sunlight and can improve camera stability during handheld filming.
Can the Electronic Viewfinder be removed?
Yes. The EVF has a removable design, allowing it to be fitted only when required and removed to maintain the camera's compact form for gimbal work or lightweight rigs.
Why does the Electronic Viewfinder tilt?
The EVF tilts from 0° to 90°, making it easier to maintain a comfortable viewing position when shooting at low, high or unconventional camera angles.
Does the Electronic Viewfinder replace the FX5’s LCD monitor?
No. The FX5 continues to use its 3.5-inch four-axis LCD monitor whether or not the Electronic Viewfinder is fitted. The EVF provides an additional eye-level viewing option for productions where it is more practical.
Why would I use an Electronic Viewfinder instead of the LCD?
An eye-level viewfinder is generally easier to see in bright outdoor conditions and provides an additional point of contact between the camera and operator, helping improve stability during handheld filming.
Is the Electronic Viewfinder useful for gimbal work?
Many operators remove the viewfinder for gimbal and lightweight rig configurations to reduce size and weight, then refit it for handheld or outdoor productions where eye-level monitoring offers greater comfort and visibility.
Sony FX5 Electronic Viewfinder Specifications
|
Compatible camera |
Sony FX5 |
|
Display type |
OLED electronic viewfinder |
|
Resolution |
3.68 million dots |
|
Brightness |
Up to 2500cd/m² |
|
HDR monitoring |
Yes |
|
10-bit monitoring |
Yes |
|
Wide colour gamut |
Yes |
|
Tilt adjustment |
0° to 90° |
|
Camera connection |
Dedicated VF terminal |
|
Maximum power consumption |
Approx. 1.6W |
|
Dimensions (W × H × D) |
Approx. 59.9 × 46.1 × 94.9mm |
|
Weight |
Approx. 95.7g |
|
Operating temperature |
0°C to 40°C |
What’s in the Box
- Sony FX5 Electronic Viewfinder
- Eyepiece Cup
- Terminal Protect Cap
