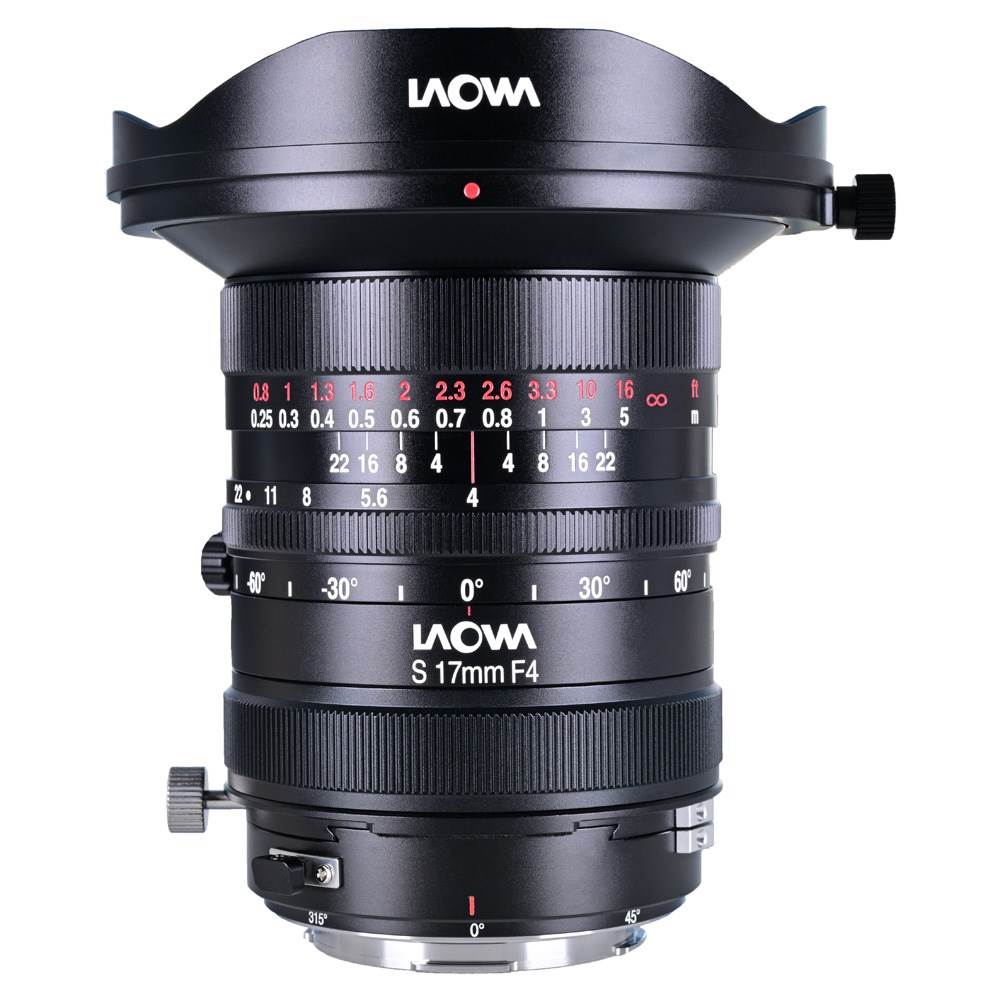

Laowa 17mm f/4 Zero-D Shift Lens for L Mount

Laowa 17mm f/4 Zero-D Shift Lens for L Mount Summary

The Laowa 17mm f/4 Zero-D Shift Lens for L Mount is a manual focus ultra-wide prime lens that enables perspective correction through an integrated shift mechanism. It sits within Laowa’s specialist architectural photography range and forms part of the wider tilt and shift series alongside the 15mm and 20mm models.

This shift-only version provides perspective correction and panoramic stitching without the tilt function found in the tilt-shift variant. The lens covers full-frame sensors and can also be used on APS-C cameras, while medium format mirrorless systems such as Fujifilm GFX and Hasselblad XCD can be supported with reduced shift movement.

Its wide 17mm focal length captures expansive scenes which are useful for architecture, interior spaces, landscape photography and real estate work where maintaining straight lines is essential. Laowa’s Zero-D optical design minimises distortion across the frame, helping photographers capture accurate geometry without relying heavily on software correction.

Laowa 17mm f/4 Zero-D Shift Key Features

• Laowa 17mm f/4 Zero-D Shift Sony E Key Features
• Manual focus 17mm ultra-wide prime with shift control
• Zero-D optical design maintains minimal distortion across the frame
• Maximum ±11mm shift corrects converging vertical lines in architectural scenes
• 14-blade diaphragm produces smooth defocus and distinct sunstars
• 86mm front filter thread accepts standard screw-in filters
• Short minimum focusing distance of 25cm for close foreground detail
• Built-in tripod support with Arca-Swiss compatibility for stable mounting
• 360° rotating lens body allows vertical or horizontal shift orientation

Laowa 17mm f/4 Zero-D Shift Lens for L Mount In More Detail

Ultra-wide coverage for architectural framing

A focal length of 17mm delivers a very wide perspective suited to photographing buildings, interiors and landscapes where capturing the full environment is important. This focal length sits between Laowa’s 15mm and 20mm tilt-shift alternatives and provides a field of view that is wide enough for confined interior spaces while maintaining natural perspective across the frame.

This type of focal length is commonly used in architectural and real estate photography where smaller environments and tall buildings often require wider coverage.

Perspective control using shift movement

The lens incorporates a shift mechanism with a movement range of ±11mm on full-frame cameras. Shifting the optical axis allows photographers to adjust framing while keeping the camera body level, which helps prevent converging vertical lines when photographing tall structures.

This movement also allows multiple exposures to be captured for panoramic stitching without rotating the camera. By shifting the lens between exposures, photographers can create wider panoramic images while maintaining consistent perspective across the stitched frame.

Zero-D optical design

Laowa’s well-known Zero-D optical concept controls optical distortion directly within the lens design rather than relying on software correction. Straight architectural lines remain natural across the frame, which is particularly important when photographing buildings and interiors where distortion can become noticeable.

Maintaining minimal distortion also reduces the amount of perspective correction required during post-processing.

Close focusing for foreground detail

A minimum focusing distance of 25cm allows photographers to work close to subjects while maintaining the wide field of view typical of a 17mm lens. This makes it possible to place foreground details within landscapes or architectural scenes while keeping background elements visible in the same frame.

This close focusing ability can also be useful for product or tabletop photography where environmental context is required around the subject.

Practical filter compatibility

Many ultra-wide lenses require large square filter systems due to their front element design. This lens, however, includes a standard 86mm filter thread, which allows photographers to attach screw-in filters directly.

This simplifies the use of polarising filters or neutral density filters when shooting landscapes, architecture or long exposures.

Integrated support and rotation

The lens includes a built-in tripod support which attaches directly to Arca-Swiss compatible tripod heads. This improves stability when using shift adjustments and keeps the camera balanced when mounted on a support system.

A 360° rotating lens body allows the direction of shift movement to be changed easily. Photographers can rotate the lens to apply horizontal or vertical shift depending on the framing requirement.

Frequently Asked Questions

What is the difference between the shift and tilt-shift versions of this lens?

The shift version provides perspective correction through horizontal or vertical lens movement. The tilt-shift version adds a tilt mechanism which allows the focus plane to be adjusted for creative depth-of-field control and focus plane manipulation.

Who is this lens best suited for?

Architectural photographers, real estate photographers and landscape photographers benefit most from the shift mechanism, particularly when photographing buildings where maintaining straight vertical lines is important.

Can the lens be used on APS-C cameras?

Yes. The lens covers full-frame sensors and can also be used on APS-C cameras, producing a narrower field of view.

Does the lens support standard screw-in filters?

Yes. The front element includes an 86mm filter thread which accepts standard screw-in filters.

Why would photographers use shift instead of correcting perspective in software?

Correcting perspective optically using lens shift maintains image resolution and avoids stretching parts of the frame that can occur when correcting converging lines in software.

Laowa 17mm f/4 Zero-D Shift Lens for L Mount Specifications

What’s in the Box

• Laowa 17mm f/4 Zero-D Shift Lens for L Mount
• Lens caps
