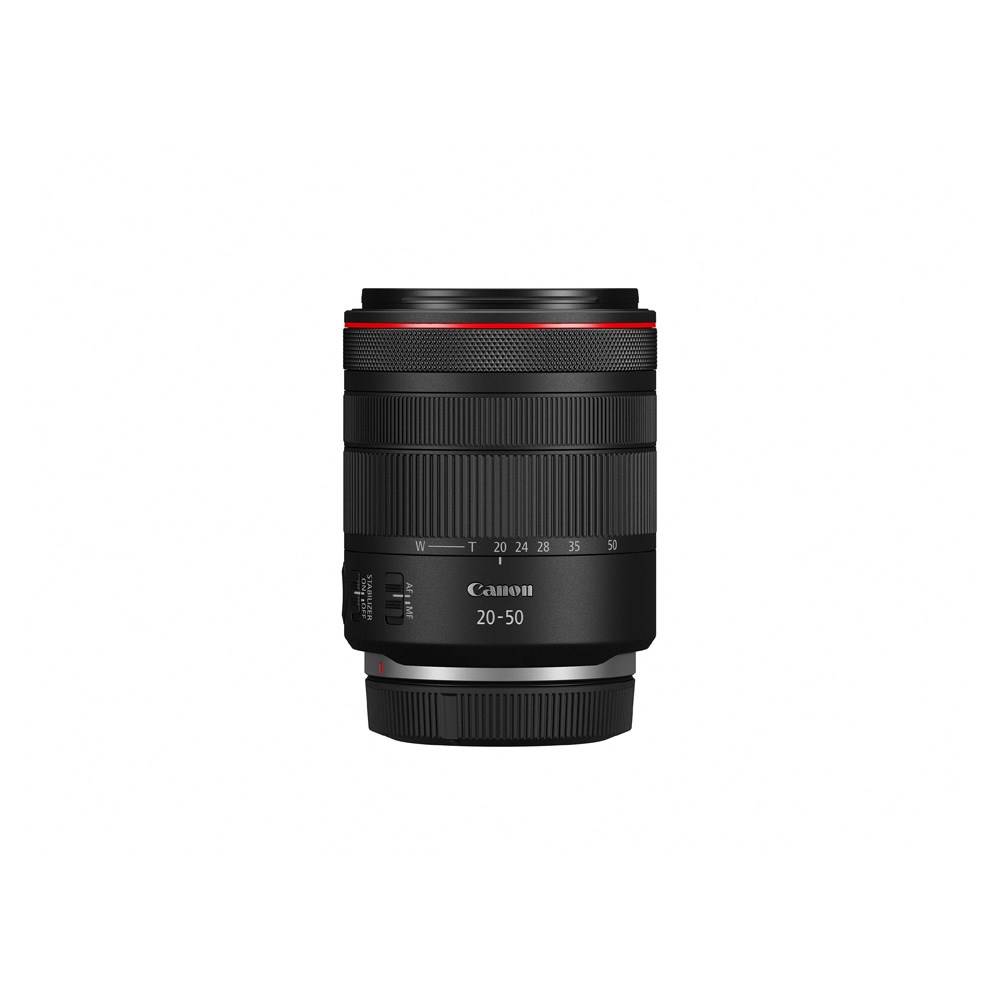

Canon RF 20-50mm F4 L IS USM PZ Lens

Canon RF 20-50mm F4 L IS USM PZ Lens Summary

The Canon RF 20-50mm F4 L IS USM PZ is a full-frame RF mount power zoom lens for video-first and hybrid creators. It sits within Canon's video-focused RF lens lineup, combining a constant f/4 aperture, integrated power zoom and L-series construction in a compact 420g body, which is suited to handheld productions, livestreaming and solo content creation.

The 20–50mm range covers wide establishing shots through to tighter interview and presentation framing, with a non-extending barrel keeping the balance consistent throughout. A dedicated switch moves between smooth servo zoom for video and manual zoom for stills, making it a capable photography lens as well.

Power zoom transitions are controllable from the lens, compatible Canon cameras or remotely via Canon apps, with adjustable speeds to suit different shooting styles. Optical image stabilisation delivers up to 6 stops of correction, rising to 8 stops with compatible IBIS-equipped bodies. Nano USM autofocus and optically suppressed focus breathing complete a specification set designed for cleaner, more controlled video output in compact rig setups.

Canon RF 20-50mm F4 L IS USM PZ Key Features

• 20–50mm full-frame RF power zoom
• Constant f/4 aperture throughout zoom range
• Integrated power zoom control on lens body
• Remote zoom operation
• Variable zoom speed adjustment
• Up to 6-stops IS or to 8-stops with compatible IBIS
• 9-blade circular aperture
• Optically suppressed focus breathing
• L-series weather-resistant construction
• Nano USM autofocus system
• 67mm filter thread
• 420g weight

Canon RF 20-50mm F4 L IS USM PZ Lens In More Detail

20-50mm Zoom Range

The 20–50mm focal range covers wide establishing shots through to tighter framing for general creator content. At the wide end, the lens suits vlogging, streaming and environmental scenes, while the longer focal lengths provide more natural framing for closer video capture. A closest focusing distance of 24cm and maximum magnification of 0.33x also support close-up detail shots and product-focused filming.

Power Zoom Control

The integrated power zoom system supports smoother, more controlled zoom transitions during recording than a conventional mechanical zoom ring. Zoom operation is controlled directly from the lens, from compatible camera zoom levers or remotely via Canon apps, which is useful for solo production, tripod shooting and livestreaming. Variable zoom speed adjustment allows movement to be tailored from slower cinematic transitions through to faster reframing during active shooting.

Manual Zoom Operation

The electronic manual zoom ring provides responsive control with a smoother, more consistent feel than conventional power zoom designs. This supports quicker framing adjustments during handheld shooting while retaining controlled movement for video production. A dedicated manual focus ring and separate control ring also provide direct adjustment over frequently used camera settings during filming.

Constant F4 Aperture

The constant f/4 aperture maintains consistent exposure throughout the zoom range, avoiding visible brightness shifts when zooming during recording. This preserves a stable visual look across moving shots, livestreams and continuous takes. A nine-blade circular aperture also helps maintain smoother defocused areas and more natural background rendering during video capture.

Optical Image Stabilisation

Built-in optical image stabilisation reduces visible camera movement during handheld shooting, walking shots and unsupported filming. It provides up to 6-stops of correction on its own, increasing to up to 8-stops when paired with compatible cameras featuring in-body image stabilisation. This improves handheld usability for creators filming without support rigs or gimbals.

Compact L-Series Design

The lens carries L-series weather-resistant sealing and a higher-grade external finish suited to regular professional use on location. Despite the integrated power zoom system, it weighs approximately 420g and measures 98.4mm in length, supporting everyday handheld use, travel setups and smaller creator rigs. A fluorine coating on the front element also helps resist dust, moisture and fingerprints during regular outdoor shooting.

Optical Construction

The optical design consists of 13 elements in 11 groups, including two GMo aspherical lenses and three UD elements to help maintain image quality while reducing distortion and chromatic aberration across the zoom range. Air Sphere Coating, Super Spectra Coating and fluorine protection also help minimise flare and ghosting during backlit shooting and more demanding lighting conditions.

USM Autofocus

The Nano USM autofocus system delivers quieter focusing performance suited to video recording and on-camera microphone use. Smooth focus transitions maintain a natural look during subject tracking, interviews and solo presentation filming, while optically suppressed focus breathing helps preserve more consistent framing during focus adjustments.

RF Mount Compatibility

The RF mount provides full compatibility with Canon EOS R system cameras, supporting integrated communication between lens and body for stabilisation, autofocus and power zoom operation. The lens is well matched to creator-focused bodies such as the EOS R6 V, where integrated zoom controls and compact handling support a streamlined handheld workflow.

It also shares the same 67mm filter diameter as Canon’s hybrid prime lenses for filter and accessory swapping.

Learn more about the RF 20-50mm F4 L IS USM PZ Lens in our Canon EOS R6 V Review, which includes hands-on impressions, video features and lens performance details.

Frequently Asked Questions

Is the RF 20-50mm F4 PZ primarily a video lens?

Yes. The integrated power zoom, constant f/4 aperture, optical image stabilisation and quieter Nano USM autofocus are oriented toward handheld video, livestreaming and solo creator workflows. It can also be used for photorgaphy however.

What is the difference between power zoom and manual zoom on this lens?

Power zoom delivers motorised, speed-adjustable transitions controlled from the lens, a compatible camera or remotely via Canon apps. The electronic manual zoom ring provides more direct control for smooth handheld reframing.

Which Canon cameras support the power zoom function?

The lens is compatible with Canon EOS R system cameras via the RF mount. Power zoom operation requires a compatible camera body, while some functions may also depend on firmware support. Examples incluse the Canon EOS R6 V and EOS R50 V.

Is it suited to solo or run-and-gun filmingmaking?

Yes. Remote zoom control, optical image stabilisation and the compact 420g design make it practical for solo production, unsupported handheld shooting and travel-light creator workflows.

Does the aperture change when zooming?

No. The f/4 aperture remains constant throughout the 20–50mm zoom range, maintaining consistent exposure during zoom transitions.

How does this compare to the RF 24-105mm F4 L IS USM?

The RF 20-50mm F4 PZ has a shorter focal range but adds integrated power zoom functionality and a more compact design, making it better suited to handheld video and creator-focused workflows.

Is 20mm suitable for vlogging?

Yes. The 20mm wide-angle field of view is useful for handheld vlogging, environmental framing and streaming setups where more of the scene needs to remain visible.

Is weather sealing included?

Yes. L-series construction includes weather-resistant sealing and a fluorine coating on the front element for more reliable outdoor use.

Canon RF 20-50mm F4 L IS USM PZ Lens Specifications

What’s in the Box

• Canon RF 20-50mm F4 L IS USM PZ Lens
• Front cap
• Rear cap
