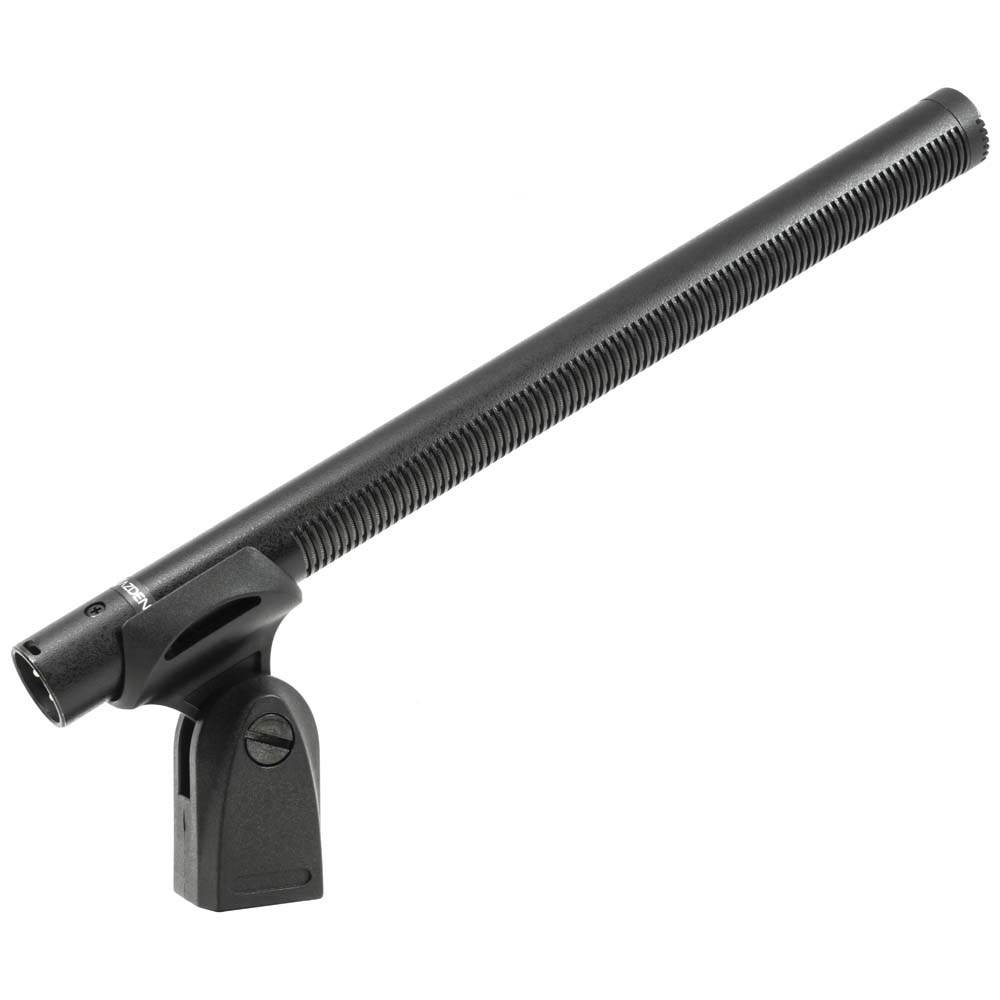

Azden SGM-3500L Broadcast Spec Shotgun Microphone Hypercardioid
This product is no longer available
The Azden SGM-3500L Shotgun Mic offers a focused Hypercardioid polar pattern for professional Broadcast with an ultra-low noise floor at 13 dB, all metal brass body and the highest detail and nuance.
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
Adhering to Azden’s highest engineering and performance standards, the 3500 series shotgun microphones are designed to satisfy the needs of even the most fastidious audio and video professionals.
Measuring nearly 10” in length, the SGM-3500L’s long interference tube creates an exaggerated directional pickup pattern for extreme off-axis sound rejection, especially at the higher frequencies. This quality makes it exceptionally well suited for boom pole work in professional video production.
- Broadcast Spec Shotgun Microphone - hypercardioid
- Extremely Low Self-Noise
- The 3500 series boasts an ultra-low noise floor at 13 dB (A weighted), for crystal clear audio
- Tuned for Speech Capture
- Frequency response is boosted in the area of 5 kHz to 10 kHz where speech articulation is most present
- All Metal Brass Body
- Provides optimal RF rejection and durability
- High Sensitivity Mic Element
- Captures a level of detail and nuance beyond any other Azden microphone
- Wide Frequency Response
- From 40 Hz to 20,000 Hz with roll off at the first octave to avoid low frequency noise
- Focused Directionality
- The SGM-3500L offers a focused hypercardioid polar pattern
- 10 Year Warranty
- Backed by Azden’s longest warranty term, unmatched by other microphones in this class
- Connector Type: 3-pin XLR
- Dimensions: 3500: 180 mm x φ19 mm (7.08” x φ0.75”), 3500L: 247 mm x φ19 mm (9.72” x φ0.75”)
- Directionality: Hypercardioid
- Dynamic Range: 118 dB
- Frequency Response: 40 Hz – 20 kHz
- Impedance: 120 Ω (at 1 kHz)
- Microphone Type: Condenser
- Noise Floor: 13 dB (A weighted)
- Power Requirement: 48 V DC Phantom (±4 V )
- S/N Ratio: 82 dB (1 kHz at 1 Pa)
- Sensitivity: 3500: -31 dB, 3500L: -28 dB, at 1 kHz (0 dB = 1 V/Pa)
- SPL (Sound Pressure Level) : 130 dB SPL (1 kHz at 1% T.H.D.)
- Weight: 140 g (5.0 oz), 3500L: 170 g (6.0 oz)
