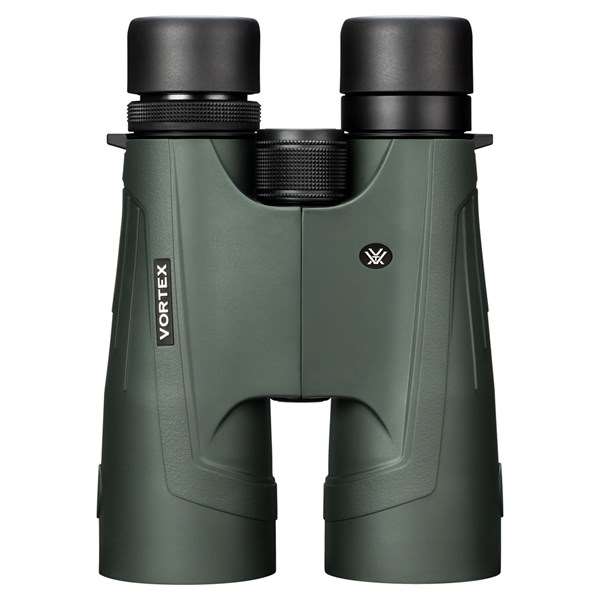

Vortex Kaibab HD 18x56 Binocular
Product Code: 9780022V
Share this item:
The Vortex Kaibab HD 18x56 Binocular combines extensive 18x magnification with binocular viewing and 56mm objectives for detailed long-distance wildlife observation.
Key Features
- 18x magnification with large 56mm objective lenses
- 3.7° field of view for long-distance observation
- HD Optical System with APO colour correction
- XR Plus anti-reflective coatings and Phase Correction
- True Open Hinge construction with rubber armour
- Argon purged, waterproof, fogproof and shockproof
- Locking right-eye diopter and adjustable eyecups
- Tripod recommended, with Sport Binocular Adapter included
Vortex Kaibab HD 18x56 Binocular Summary
This model bridges the gap between conventional binoculars and a spotting scope, providing powerful 18x magnification for studying distant wildlife and landscape details with both eyes. Large 56mm objectives, HD optics and XR Plus coatings support light transmission and low-light viewing.
This is a tripod-oriented binocular rather than a general-purpose handheld model. Vortex recommends tripod use, and the supplied Sport Binocular Adapter provides mounting straight from the box. Its 3.7° field of view and approximately 1,233g weight further reflect its specialist long-distance role.
In More Detail
HD Optics for Long-Distance Viewing
The HD Optical System uses selected glass elements to maintain resolution and colour fidelity while reducing chromatic aberration. An APO system uses index-matched lenses for colour correction across the visible spectrum, while Phase Correction coatings improve resolution and contrast through the roof-prism system.
XR Plus anti-reflective coatings are applied to air-to-glass surfaces to maximise light transmission, with Vortex Plasma Tech used for coating durability and performance.
Outdoor Protection and Controls
True Open Hinge construction reduces bulk and provides space around the barrels for handling, while rubber armour adds a non-slip exterior and additional protection. ArmorTek protects exposed lens surfaces against scratches, oil and dirt.
Argon-gas purging and O-ring sealing provide waterproof and fogproof performance, with shockproof construction providing additional impact resistance. A central focus wheel controls both barrels, while a locking right-eye diopter and adjustable eyecups accommodate individual viewing requirements.
Tripod Support for 18x Viewing
The combination of 18x magnification and 1,233g weight makes support an important part of this binocular’s intended use. Vortex specifically recommends tripod mounting, and the supplied Sport Binocular Adapter allows a compatible tripod to be used without purchasing the adapter separately.
This makes the Kaibab particularly suited to extended observation from a fixed position, where its high magnification can be used to study distant wildlife and landscape details.
Frequently asked questions
Why would I choose this instead of a conventional 10x or 12x binocular?
The 18x magnification is intended for detailed observation at much longer distances. That makes the Kaibab more specialised than general-purpose binoculars, with tripod-supported viewing particularly useful when studying distant wildlife, landscapes and natural features.
How does it differ from the Razor UHD 18x56?
Both provide specialist 18x56 viewing, but the Razor UHD sits at the top of the Vortex range with its more advanced UHD optical system and premium construction. The Kaibab provides an alternative for buyers primarily interested in high-magnification long-distance observation without stepping up to the flagship model.
Specifications
|
SKU |
KAI-5618 |
|
Magnification |
18x |
|
Objective Lens Diameter |
56mm |
|
Eye Relief |
16.4mm |
|
Angular Field of View |
3.7° |
|
Linear Field of View |
Approx. 65m at 1,000m |
|
Close Focus |
Approx. 6.04m |
|
Interpupillary Distance |
60-76mm |
|
Height |
Approx. 196mm |
|
Width |
Approx. 145mm |
|
Weight |
Approx. 1,233g |
|
Optical System |
HD Optical System |
|
Lens Coatings |
XR Plus |
|
Colour Correction |
APO System |
|
Phase Correction |
Yes |
|
Diopter |
Locking, right eyepiece |
|
Eyecups |
Adjustable |
|
Gas Purging |
Argon |
|
Waterproof |
Yes |
|
Fogproof |
Yes |
|
Shockproof |
Yes |
|
Exterior Lens Protection |
ArmorTek |
|
Tripod Adaptable |
Yes |
What’s in the Box
- Vortex Kaibab HD 18x56 Binocular
- Rainguard Eyepiece Cover
- Tethered Objective Lens Covers
- Comfort Neck Strap
- Deluxe Padded Carry Case
- Sport Binocular Adapter
- Lens Cloth
