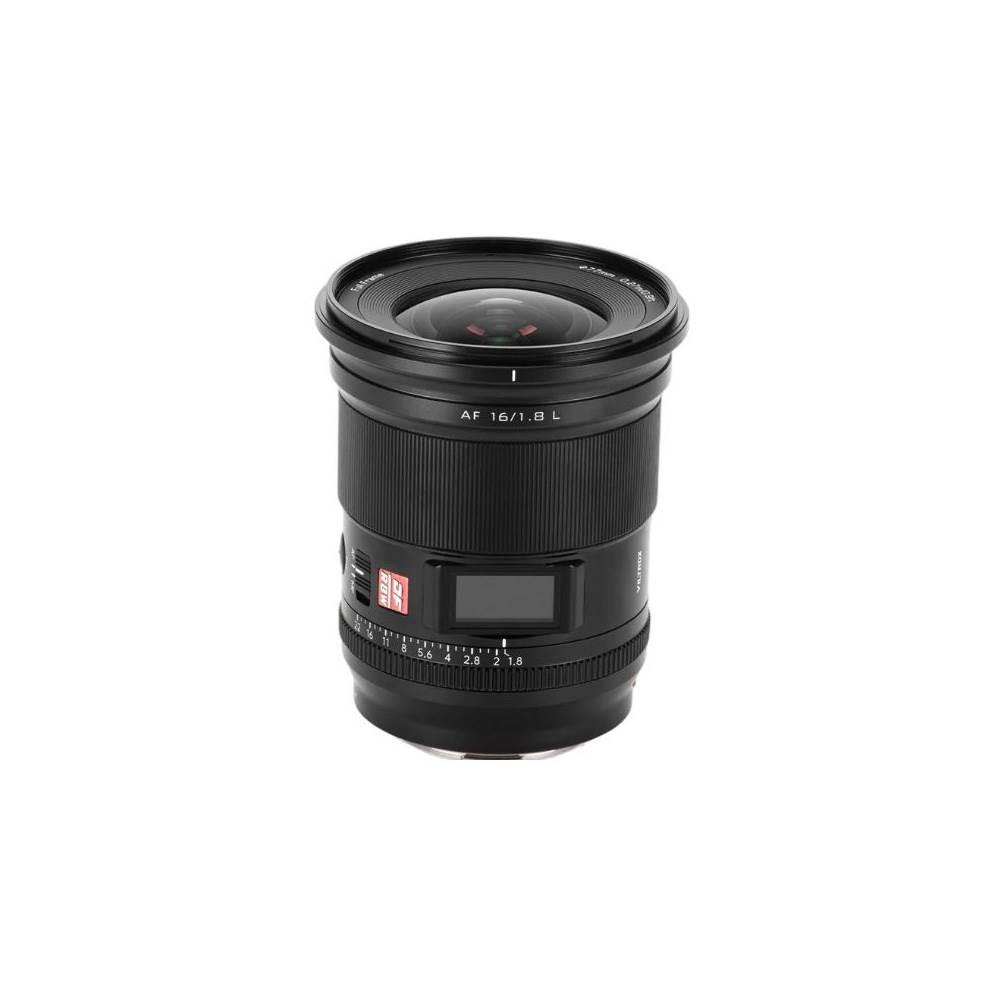

Viltrox AF 16mm f/1.8 Lens for L Mount

Viltrox AF 16mm f/1.8 Lens for L Mount Summary

The Viltrox AF 16mm f/1.8 for L Mount is a full-frame ultra-wide prime and Viltrox’s first certified photography lens within the L-Mount Alliance. It provides an expansive 105.6° angle of view and a fast f/1.8 aperture in a non-bulbous front design that accepts 77mm filters.

The optical design employs 15 elements in 12 groups, including four ED and three aspherical elements to control distortion, chromatic aberration and coma. A minimum focus distance of 0.27m with 0.1x magnification supports creative compositions.

STM autofocus is compatible with eye and face detection where available, while controlled focus breathing benefits video content creation. The lens includes dual Fn buttons, an AF/MF switch, a click switch, with a USB-C firmware port and a 0.96-inch colour lens information display to quickly establish current settings, even in the dark.

Viltrox AF 16mm f/1.8 Lens for L Mount Key Features

• Full-frame 16mm ultra-wide prime with 105.6° angle of view
• F1.8 aperture supports low-light shooting and shallow depth control
• 15 elements in 12 groups including four ED and three aspherical elements
• STM autofocus with eye and face detection support
• Minimum focus distance of 0.27m with 0.1x magnification
• Minimal focus breathing for video use
• 77mm filter thread with non-bulb front design
• 0.96-inch colour lens information display
• Dual Fn buttons, AF/MF switch and click switch
• Weather-sealed magnesium-aluminium alloy construction

Viltrox AF 16mm f/1.8 Lens for L Mount in More Detail

Ultra-wide coverage with advanced optics

At 16mm, the lens provides a 105.6° field of view, which is ideal for capturing expansive landscapes, architecture and night skies. Distortion is controlled to maintain faithful rendering of lines and geometry.

The optical construction uses 15 elements in 12 groups. Four ED elements suppress chromatic aberration and colour fringing, while three aspherical elements reduce distortion and coma. This supports sharp detail from centre to edge and maintains accurate star rendering for night sky photography.

Aperture control

The f/1.8 aperture increases light transmission in low-light conditions, supporting faster shutter speeds and lower ISO settings. Even at an ultra-wide focal length, the aperture also enables shallow depth of field effects, allowing relatively pronounced subject separation within environmental compositions.

A minimum focus distance of 0.27m with 0.1x magnification enables close-range perspectives while retaining broad background context.

Autofocus

An STM stepping motor delivers fast and responsive autofocus with tracking support, including eye and face detection through compatible camera systems. Focus transitions remain smooth, and minimal focus breathing helps preserve framing during focus shifts in video recording.

Controls and professional features

The lens includes two customisable Fn buttons, an AF/MF switch and a click switch for stepped or stepless aperture adjustment. A built-in 0.96-inch colour display shows focus distance, depth of field and aperture data in real time.

A USB-C port supports firmware updates. The non-bulb front element accepts 77mm filters, enabling use of ND, CPL and other standard screw-in filters without specialised holders.

Lens design

The barrel uses magnesium-aluminium alloy die-casting with high-grade dust sealing. The lens is officially certified within the L-Mount Alliance and uses the native L Mount communication protocol, supporting autofocus, Eye/Face detection, EXIF transmission and advanced camera control functions across compatible Leica, Panasonic and Sigma bodies.

Frequently asked questions

Is this lens certified for L Mount?

Yes, it is an officially certified L-Mount Alliance lens using the native L Mount protocol.

What is the angle of view?

It provides a 105.6° field of view on full-frame cameras.

Does the lens accept standard filters?

Yes, it features a 77mm filter thread and a non-bulb front design.

What is the minimum focusing distance?

The minimum focusing distance is 0.27m with 0.1x magnification.

Does it support eye and face detection?

Yes, it supports eye and face detection via compatible L Mount cameras.

Is focus breathing noticeable in video?

Focus breathing is minimised to help maintain consistent framing.

Does it have a built-in display?

Yes, it features a 0.96-inch colour lens information screen, which is especially useful when shooting night photography.

What’s in the box

• Viltrox AF 16mm f/1.8 Lens for L Mount
• Front lens cap
• Rear lens cap
• Lens hood

Viltrox AF 16mm f/1.8 Lens for L Mount Specifications
