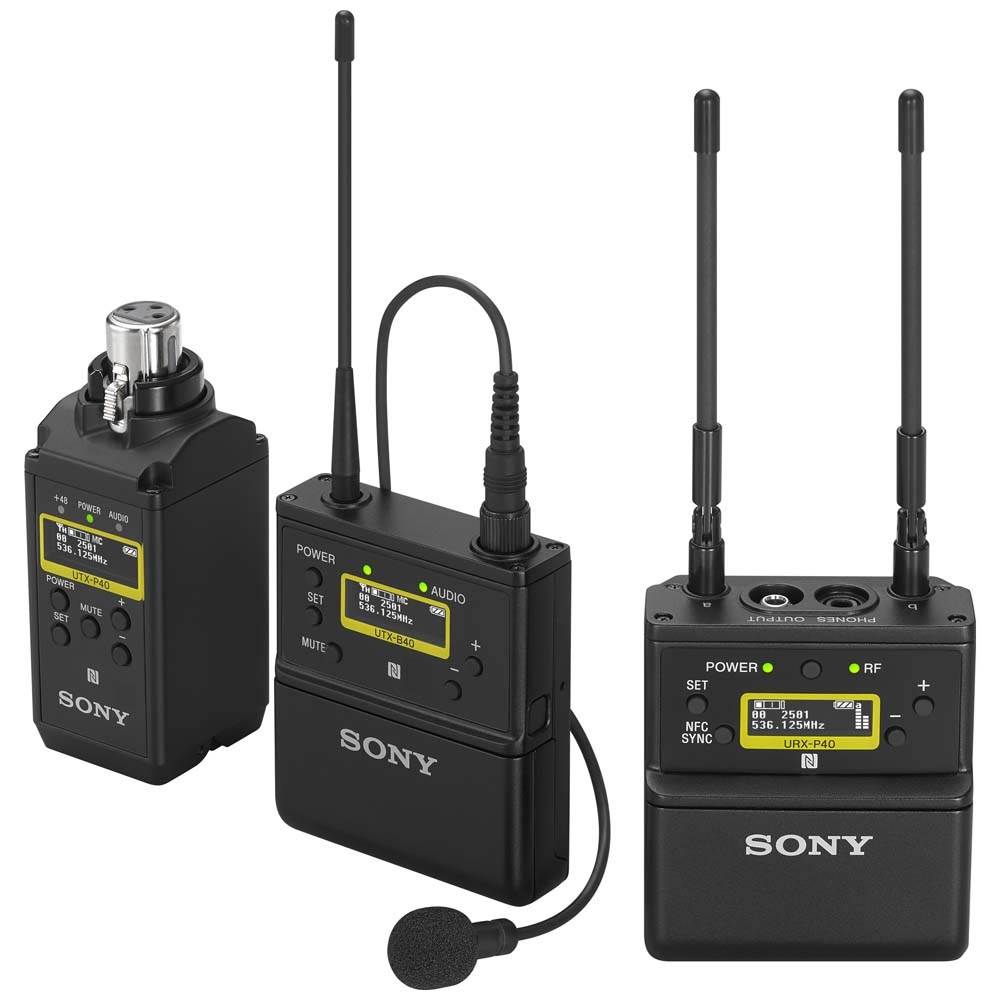

Sony UWP-D26 Transmitter and XLR Plug-On Wireless Microphone Package
This product is no longer available
Product Code: 9101009M
Share this item:
Sony has answered the greater demands on high quality audio with the UWP-D26 Transmitter and XLR Plug-On Wireless Microphone kit which includes a lighter, smaller design and one-button NFC SYNC.
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
We Love
- Compact and lightweight Bodypack with smaller transmitters for portable audio recording
- High quality sound from Sony’s 24-bit Digital Signal Processing
- Daylight viewable OLED screen for indoor and outdoor status viewing
- One-button channel setting with SYNC using near-field communication (NFC)
- User friendly features including +15 dB boost for off-mic audio and auto gain mode
Sony UWP-D26 Wireless Mic Kit Summary
Sony has combined high quality 24-bit Digital Signal Processing (DSP) with a smaller and lighter design in this 4th generation UWP-D26 Transmitter and XLR Plug-On Wireless Microphone Package. Despite advanced features the system is easy to set up and operate, now featuring one-button NFC SYNC, which takes advantage of nearfield communication. Sony protects the signal with true diversity reception, two receiving antennas and two RF tuning circuits. The receiver constantly compares the two signals while automatically outputting the stronger signal. You can even optimise receiver antenna angles for further transmission clarity.
Features at a glance
- True double tuner diversity for stable signal reception
- Auto gain mode volume control
- +15 dB gain volume boost mode for off-mic audio
- Line input
- +48V power supply (plug-on transmitter)
- Channel memory for fast switching between receiver frequencies for two transmitter operation
- Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
- Headphone output for monitoring
- Monitor mode for using a receiver as an ear monitor
- Variable muting function
- Compatibility with Sony WL-800/UWP series
- Receiver output level control
- High visibility OLED display, ideal for indoor/outdoor use
Sony UWP-D26/K33 Transmitter and XLR Plug-On Wireless Mic Kit in More Detail
Auto Gain Mode
You won’t always know the volume of your talent’s voice in advance, so Auto Gain mode has you covered, which sets the gain moderately high, then uses a limiter to help prevent distortion.
+15 dB off-mic Audio Boost
The +15 dB boost resets the gain when the microphone is not near the person’s mouth, helping to avoid insufficient audio levels during interviews.
Line Input
Set the appropriate input levels with MIC/LINE switching levels and adjustable attenuators.
Channel Memory
The Channel Memory function excels when you’re using one receiver in combination with two transmitters, where you can instantly switch between the previously set channel and the current channel.
Transmitter Frequency Sent to Receiver
NFC communication relays transmitter settings such as frequency and compander mode directly to the receiver, making it easy to set up multiple receivers in combination with one transmitter.
Reduced Size and Weight
A new lighter design helps to avoid heavy receivers weighing down your camera or bulky transmitters getting in the way of your talent. The UTX-B40 bodypack transmitter and UTX-P40 plug-on transmitter are both 20% smaller than previous models. The combined URX-P40 receiver/SMAD-P5 adaptor is much shorter than the prior generation, making for a better fit with pro Sony camcorders and digital interchangeable lens cameras.
UTX-B40 Bodypack Transmitter
- High quality Sony digital audio processing
- NFC SYNC for quick and easy secure channel setting
- (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
- Auto and manual gain mode
- +15 dB gain volume boost mode for off-mic audio
- Switchable MIC/LINE input level
- Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
- Variable muting function
- Compatibility with Sony WL-800/UWP/UWP-D series
- High visibility OLED display, ideal for indoor/outdoor use
- USB connector for power supply
UTX-P40 XLR Plug-on Transmitter
- High quality sound with Sony digital audio processing
- NFC SYNC function for quick and easy secure channel setting
- XLR-3-11C type (female)
- (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
- Auto and manual gain mode
- +15 dB gain volume boost mode for off-mic audio
- Switchable MIC/LINE input level
- +48V power supply
- Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
- Variable muting function
- Compatibility with Sony WL-800/UWP/UWP-D series
- High visibility OLED display, ideal for indoor/outdoor use
- USB connector for power supply
URX-P40 Portable Receiver
- High quality sound with Sony Digital Audio Processing
- NFC SYNC function for quick and easy secure channel setting
- True double tuner diversity for stable signal reception
- Channel memory function for fast switching between two receiver frequencies
- Headphone output for monitoring
- Monitor mode for using a receiver as an ear monitor
- Compatible with Sony's WL-800/UWP series
- Output level control for receiver
- High visibility OLED display (indoor/outdoor use)
- USB connector for power supply
- Digital/analog switchable audio interface support using SMAD-P5 Multi-Interface Shoe Adaptor (optional)
What’s in the box
- UTX-P40 Plug-on Transmitter
- UTX-B40 Bodypack Transmitter
- URX-P40 Portable Receiver
- ECM-V1BMP omni-directional lavalier microphone
- Lаvаlіеr wіndѕсrееn
- Lаvаlіеr mic hоldеr clір
- Ѕhое mоunt adарtоr
- 2x Веlt clірs
- ХLR-ВМР cаblе
- Ѕtеrео mіnі ВМР cаblе
- Soft case
Our Verdict
Sony has answered the ever greater demands on capturing high quality audio with the UWP-D26 Transmitter and XLR Plug-On Wireless Microphone Package. It offers excellent sound quality with digital processing, reliable RF transmission and true double tuner diversity reception. A range of user-friendly features make an ideal partner for ENG, field productions, as well as documentaries and weddings. The updated design of the bodypack and transmitters are also 20% smaller in this generation, making it easier than ever to record in the field.
It’s easy to set up multiple receivers in combination with one transmitter using NFC along with one-button NFC SYNC for the included transmitters and receivers. Connecting to cameras and video cameras harnesses Sony’s Multi Interface Shoe resulting in higher sound quality with low noise. Other professional features include Auto Gain Mode which utilises a limiter as well as +15 dB boost which resets gain if the ECM-V1BMP omni-directional lavalier microphone isn’t near enough to the subject. All round this wireless system is an excellent solution for solo film makers, vloggers and videographers to capture professional audio with an easy to set up and portable wireless system.
