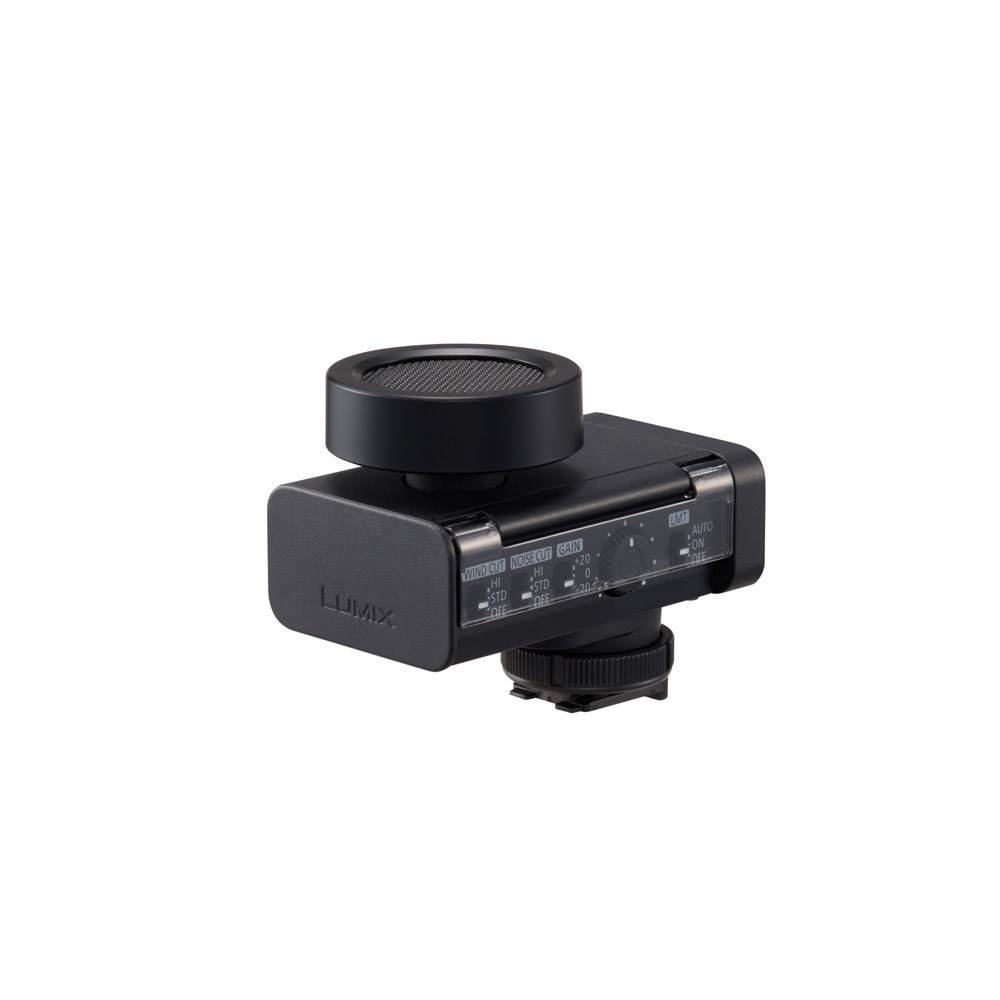

Panasonic DMW-DMS1 4 Channel Electret Condenser Microphone Array
Product Code: P156023M
Share this item:
The Panasonic DMW-DMS1 4 Channel Electret Condenser Microphone Array supports directional 32-bit float high resolution audio and audio backup on compatible Lumix cameras.
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
Panasonic DMW-DMS1 4 Channel Electret Condenser Microphone Array Summary
The Panasonic DMW-DMS1 is a four-channel electret condenser microphone array that connects to Lumix cameras via a compatible hot shoe. It captures high-resolution audio using a large-diameter 10mm microphone array and supports multiple directional patterns for different recording situations.
This mic is ideal for Lumix hybrid creators who require professional on-camera audio, and it features directionality control, 32-bit float recording support on compatible bodies and cable-free operation. It suits filmmaking, interviews and solo creators who want pro-level directional audio that won’t clip without external recorders or necessary cabling.
Panasonic DMW-DMS1 Microphone Key Features
- Four-channel electret condenser microphone array for Panasonic Lumix cameras
- Large-diameter 10mm mic array captures detailed sound reproduction
- Six selectable directional modes covering forward, rear and bidirectional capture
- 32-bit float recording support on compatible Lumix bodies with firmware update
- Backup recording mode available on supported cameras
- Integrated shock-mount mechanism reduces vibration noise
- Supplied windscreen minimises wind interference outdoors
- Cable-free hot shoe connection enables clean camera mounting
Panasonic DMW-DMS1 4 Channel Electret Condenser Microphone Array In More Detail
Four-channel array
The DMW-DMS1 uses a 10mm large-diameter microphone array to capture sound across four channels. This multi-capsule design enables selectable directional control rather than fixed pickup, with audio transmitted directly through the camera interface in supported workflows.
Selectable directionality modes
Six directional modes adapt to different recording scenarios. Forward Directionality Cardioid focuses on subjects in front of the camera. Stereo and Wide Stereo expand ambient capture for documentary or environmental sound. Forward Supercardioid narrows focus for interviews. Rearward Supercardioid isolates sound behind the camera. Bidirectional Supercardioid captures front and rear sources simultaneously. Physical switches on the body allow immediate pattern changes.
32-bit float and backup recording
When paired with compatible cameras including DC-S1M2, S1M2ES and S1RM2 with updated firmware, the microphone supports 32-bit float recording. This increases headroom and helps prevent clipped audio in unpredictable conditions. A backup recording mode is also available on supported bodies.
Mechanical isolation and wind control
An internal shock-mount mechanism reduces vibration transferred from camera handling. The supplied windscreen limits wind disturbance outdoors, maintaining dialogue clarity in light wind.
Integrated hot shoe connection
The cable-free hot shoe interface handles both power and audio transmission. This reduces external wiring and keeps the camera setup compact for handheld, travel and event production.
Frequently Asked Questions
Is the Panasonic DMW-DMS1 compatible with all Lumix cameras?
Compatibility depends on the camera model and firmware version. Certain advanced features require supported bodies such as DC-S1M2, S1M2ES and S1RM2 with updated firmware.
Does the DMW-DMS1 support 32-bit float recording?
Yes, 32-bit float recording is available when used with compatible Lumix cameras and updated firmware. (Firmware must be updated to the latest version which will be released on March 10th, 2026.)
How many directional modes are available?
The microphone provides six selectable directional modes including cardioid, stereo, wide stereo and supercardioid variations.
Is this microphone suitable for interviews?
Forward Supercardioid mode narrows the pickup pattern, making it appropriate for focused dialogue capture.
Does it require external cables or batteries?
No. It connects directly via the compatible hot shoe and draws power from the camera.
Panasonic DMW-DMS1 Microphone Specifications
|
Type |
Electret condenser microphone array |
|
Channels |
Four-channel recording |
|
Microphone diameter |
10mm |
|
Directional modes |
Forward Directionality Cardioid |
|
Directional modes |
Stereo |
|
Directional modes |
Wide Stereo |
|
Directional modes |
Forward Directionality Supercardioid |
|
Directional modes |
Rearward Directionality Supercardioid |
|
Directional modes |
Bidirectional Supercardioid |
|
Gain |
-20 dB, 0 dB, +20 dB *Fixed at 0 dB when Float is selected. |
|
Audio Level |
-18 dB to +12 dB *Fixed at 0 dB when Float is selected. |
|
LMT |
OFF / ON / AUTO *Disabled when Float is selected. |
|
Sensitivity |
-12 dBFS (0 dB=1 V/Pa, 1 kHz) |
|
Frequency Response |
40 Hz to 20 kHz |
|
Recording format support |
32-bit float recording (compatible cameras only) |
|
Backup recording mode |
Supported on compatible cameras |
|
Connection |
Hot shoe connection |
|
Dimensions |
Approx. 73.7 x 45 x 63.7mm |
|
Weight |
Approx. 100g |
What’s in the Box
- Panasonic DMW-DMS1 4 Channel Electret Condenser Microphone Array
- Windscreen
- Pouch
