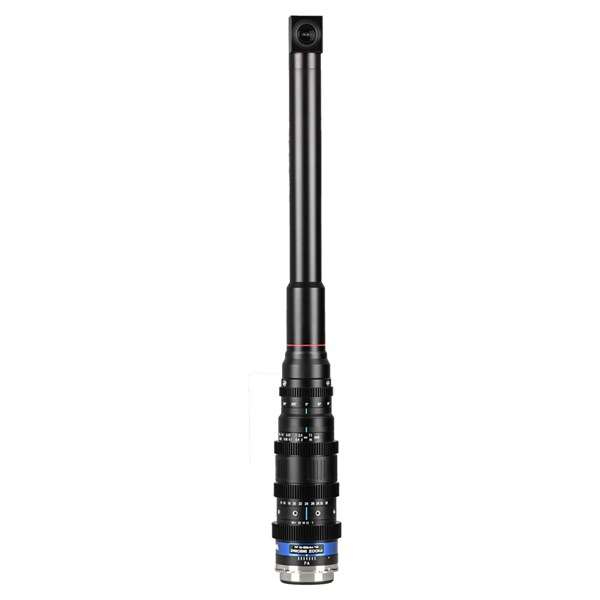

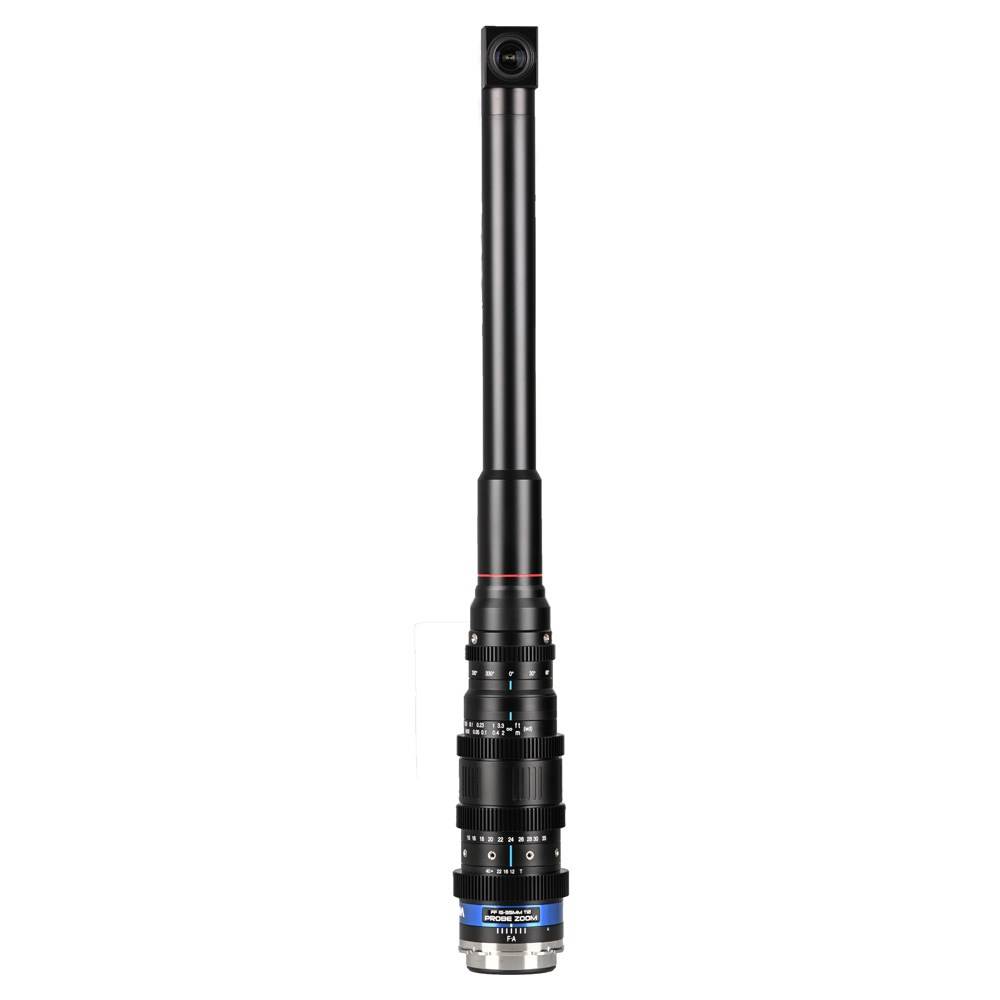

Laowa Probe Zoom 15-35mm T12 Lens (90 Degree) Arri PL
Product Code: L242710P
Share this item:
The Laowa Probe Zoom 15-35mm T12 Lens (90 Degree) Arri PL is a full frame macro cinema lens which enables extreme close-ups and features a removable 90° module that redirects the optical path.
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
Laowa Probe Zoom 15-35mm T12 Lens (90 Degree) Arri PL in More Detail
Ultra-wide to wide macro coverage
At 15mm, the lens reaches a 110.5° angle of view on full frame, producing expansive spatial rendering at close range. The zoom extends to 35mm, narrowing the angle of view to 63.4° while retaining macro capability. This broader span allows transitions from exaggerated ultra-wide perspective to a more natural wide field without changing lenses.
Extended magnification range
The lens provides a maximum magnification of 2.3x, enabling close inspection of textures, surfaces and fine detail. With a 5mm minimum working distance, subjects can sit extremely close to the front element. The tubular design separates the camera body from the subject plane, supporting controlled lighting and camera placement in miniature sets or constrained environments.
Parfocal zoom performance
Focus remains stable throughout the 2.3x zoom ratio, allowing controlled focal length shifts during recording. This supports crash zoom and perspective-based storytelling techniques without additional focus correction. Manual focus control is fully mechanical and integrates 0.8 MOD gearing for compatibility with follow focus systems and cine motors.
90° module configuration
The 90° viewing module redirects the optical axis at a right angle, enabling ground-level tracking, lateral movement and concealed camera positioning. This configuration reduces the need to tilt or reposition the entire camera rig when framing low or side-on subjects. The front barrel is not interchangeable, maintaining mechanical alignment and environmental sealing.
Cine housing and mount integration
The ARRI PL mount housing includes back focus adjustment to ensure precise flange distance calibration. The housing diameter measures 68.8mm, and weight is approximately 1400g depending on module configuration. Standardised cine gearing supports integration into established PL workflows and rigging systems.
Frequently Asked Questions
Is the Laowa Probe Zoom 15-35mm T12 full frame?
Yes, it provides full frame coverage without cropping.
How does this compare to the 15-24mm T8 version?
The 15-35mm extends to 35mm and offers a 2.3x zoom ratio with higher maximum magnification, while the 15-24mm provides a brighter T8 transmission within a shorter focal range.
Does this lens autofocus?
No, it operates with fully manual focus and cine gearing.
Can it be mounted on standard ARRI PL cameras?
Yes, it is supplied in ARRI PL mount and includes back focus adjustment for correct flange alignment.
Who is this lens suited to?
It suits macro cinematography, product films and environmental sequences requiring angled perspectives and extreme close focus capability.
Laowa Probe Zoom 15-35mm T12 Lens (90 Degree) Arri PL Specifications
|
Name |
Probe Zoom (15-35mm T12) |
|
Format |
Full Frame |
|
Focal Length |
15-35mm |
|
Aperture Range |
T12-40 |
|
Angle of View |
63.4°-110.5° |
|
Aperture Blades |
9 blades |
|
Zoom Ratio |
2.3X |
|
Gear Mod |
0.8 MOD |
|
Min. Working Distance |
5mm |
|
Max. Magnification |
1X -2.3X |
|
Focusing Method |
MF |
|
Front Diameter |
Ø32mm |
|
Dimensions |
Ø68.8 x 540 mm(Periscope) Ø68.8 x 545.6 mm(90°) Ø68.8 x 539.2 mm(35°) Ø68.8 x 545.1 mm(0°） |
|
Weight |
~1400g |
What's in the Box
- Probe Zoom 15–35mm T12 Lens (ARRI PL mount)
- Hard Case
- Front Cap
- Rear Cap
- Toolbox
- Lens support x 2
- Shim Set
- User Manual - Electronic Card
- Limited 1-Year Manufacturer Warranty
