Insta360 Mic Pro Transmitter Graphite Black
Product Code: 9029634W
Share this item:
The Insta360 Mic Pro Transmitter Graphite Black is a wireless microphone transmitter with 32-bit internal recording, selectable pickup modes and a customisable E-Ink display that expands the Insta360 Mic Pro system.
Buying Options
Insta360 Mic Pro Transmitter Graphite Black Summary
The Insta360 Mic Pro Transmitter Graphite Black is an additional or replacement transmitter for the Insta360 Mic Pro wireless microphone system. It suits creators expanding from a single-transmitter setup, replacing an existing unit or creating a more flexible recording configuration for interviews, podcasts and multi-person productions.
A three-microphone array supports multiple pickup modes including omnidirectional, cardioid, figure-8 and Voice Focus recording, allowing audio capture to adapt to different environments and speaking positions. Internal 32GB storage supports standalone 24-bit and 32-bit recording, while automatic gain control and NPU-powered noise cancelling help maintain clearer speech recording in changing conditions.
The compact transmitter weighs 19.7g and includes a customisable E-Ink display which supports logos and graphics uploaded through the Insta360 app. It pairs with compatible Insta360 Mic Pro receivers and supported Insta360 cameras for wireless recording workflows.
Insta360 Mic Pro Transmitter Key Features
- Additional or replacement Mic Pro transmitter
- Customisable E-Ink display
- Three-microphone array with four pickup modes
- 24-bit and 32-bit internal recording
- 32GB onboard storage
- NPU-powered noise cancelling
- Voice Focus beamforming mode
- Compatible with Insta360 Mic Pro receivers and supported Insta360 cameras
Insta360 Mic Pro Transmitter Graphite Black In More Detail
Additional Transmitter
This standalone transmitter expands existing Insta360 Mic Pro setups for dual-subject recording, interviews and collaborative content. It can also replace an existing transmitter within a Mic Pro system while maintaining compatibility with supported receivers and compatible Insta360 cameras.
3-Mic Array
A built-in three-microphone array supports omnidirectional, cardioid, figure-8 and Voice Focus pickup modes. This allows the transmitter to adapt to different recording scenarios including direct speech, interviews and conversational content without requiring separate microphones or accessories.
Internal Recording
The transmitter includes 32GB onboard storage for direct audio recording in 24-bit and 32-bit formats. Recording times reach up to 60 hours in 24-bit mono mode, providing local backup recording during wireless shoots or standalone audio capture when required.
Noise Cancelling
NPU-powered noise cancelling reduces environmental distractions during recording, while automatic gain control adjusts recording levels based on voice intensity and surrounding conditions. Three selectable voice presets allow speech character to be adjusted depending on the recording environment.

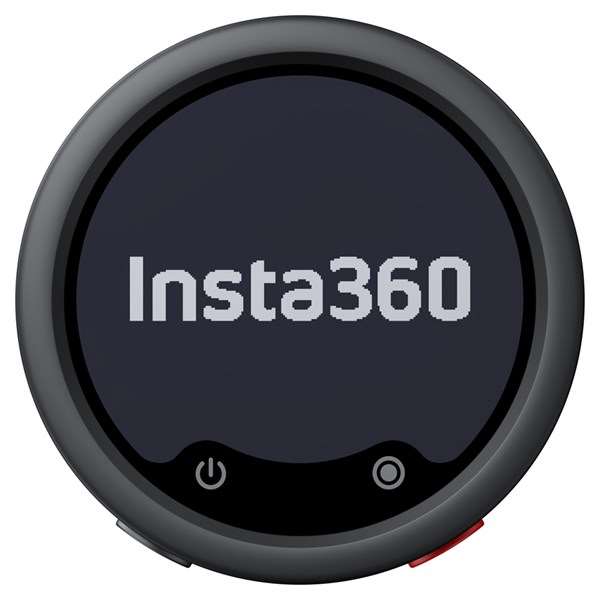

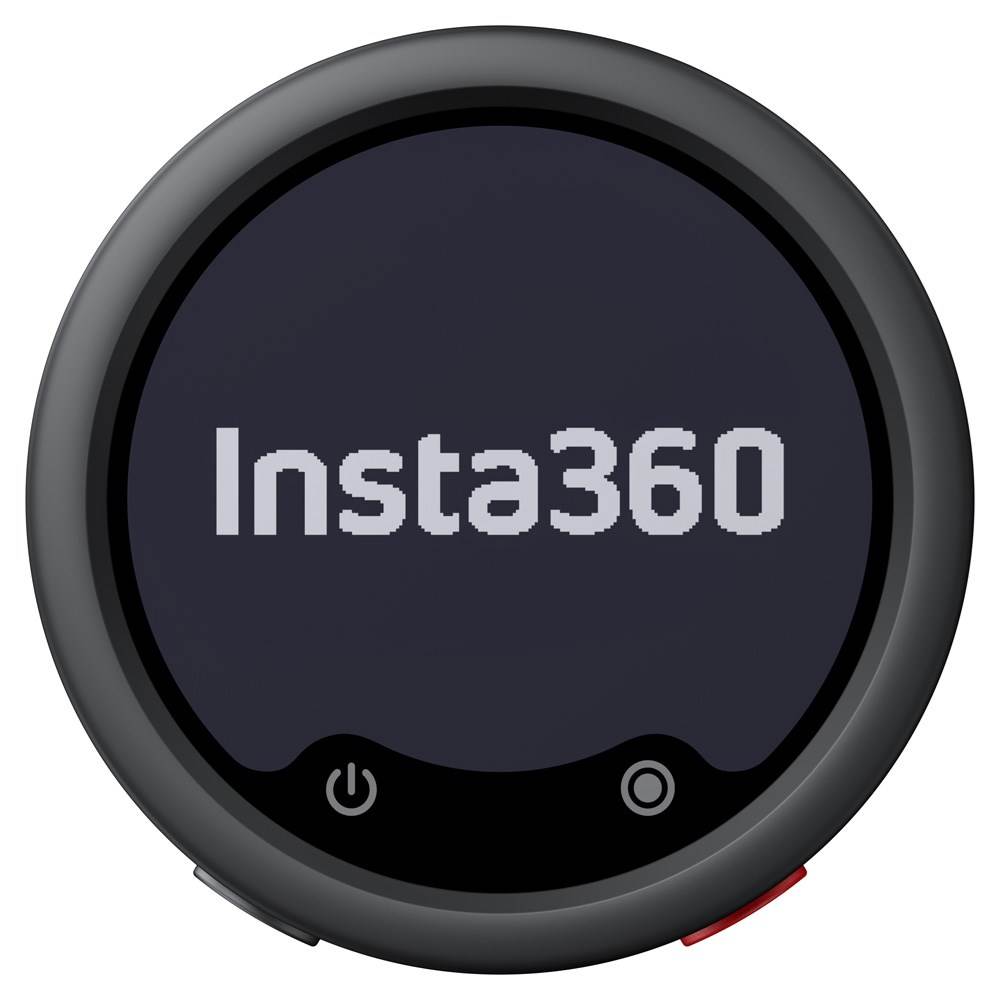

Customisable Display
An integrated E-Ink display supports custom logos, graphics and channel branding uploaded through the Insta360 app. The display remains visible in bright outdoor conditions and retains the image even when the transmitter is powered off.
Compact Design
The transmitter measures 38 × 12.2mm and weighs 19.7g, keeping it compact for handheld rigs, lightweight cameras and mobile recording setups. Battery life reaches up to 10 hours under standard operating conditions, with fast charging support providing approximately 1.5 hours of use from a five-minute charge.
Frequently Asked Questions
Can this transmitter work without a receiver?
Yes. It supports internal audio recording using the built-in 32GB storage, but wireless transmission requires a compatible receiver or supported Insta360 camera.
Is this compatible with the Insta360 Mic Pro receiver?
Yes. It pairs with compatible Insta360 Mic Pro receivers for wireless audio recording.
Can I add this to the 1 TX + 1 RX kit?
Yes. This transmitter can expand a single-transmitter setup for two-person recording.
Does this support 32-bit recording?
Yes. Internal recording supports both 24-bit and 32-bit audio formats.
What pickup modes are available?
The transmitter supports omnidirectional, cardioid, figure-8 and Voice Focus recording modes.
Can this pair directly with Insta360 cameras?
Yes. Compatible Insta360 cameras can pair directly with the transmitter without requiring a receiver.
Insta360 Mic Pro Transmitter Specifications
|
Dimensions |
38 × 12.2mm |
|
Weight |
19.7g (without clip) |
|
Wireless Transmission Mode |
GFSK 1Mbps and 2Mbps |
|
Wireless Operating Frequency |
2.400–2.4835 GHz |
|
Wireless Transmission Power |
≤ 20 dBm |
|
Bluetooth Version |
Bluetooth 5.4 |
|
Bluetooth Operating Frequency |
2.400–2.4835 GHz |
|
Bluetooth Transmission Power |
BLE ≤ 20 dBm, BR/EDR ≤ 20 dBm |
|
Battery Type |
Li-ion |
|
Battery Capacity |
240mAh |
|
Battery Energy |
0.94Wh |
|
Battery Voltage |
3.89V |
|
Charging Specification |
Max 5V |
|
Charging Time |
Approx. 1 hour, 80% in approx. 24 minutes |
|
Fast Charging |
5-minute charge provides up to 1.5 hours use |
|
Operating Time |
Up to 10 hours |
|
Onboard Storage |
32GB |
|
24-bit Mono Recording Time |
Up to 60 hours |
|
24-bit Stereo Recording Time |
Up to 29.7 hours |
|
32-bit Mono Recording Time |
Up to 44.8 hours |
|
32-bit Stereo Recording Time |
Up to 22.2 hours |
|
Operating Temperature |
-10°C to 45°C |
|
Charging Temperature |
0°C to 45°C |
What’s in the Box
- Transmitter
- Button Magnet
- Clip
- Windshield
- Carry Pouch
- USB-Cable
- QuickStart Guide
- Warranty Card
