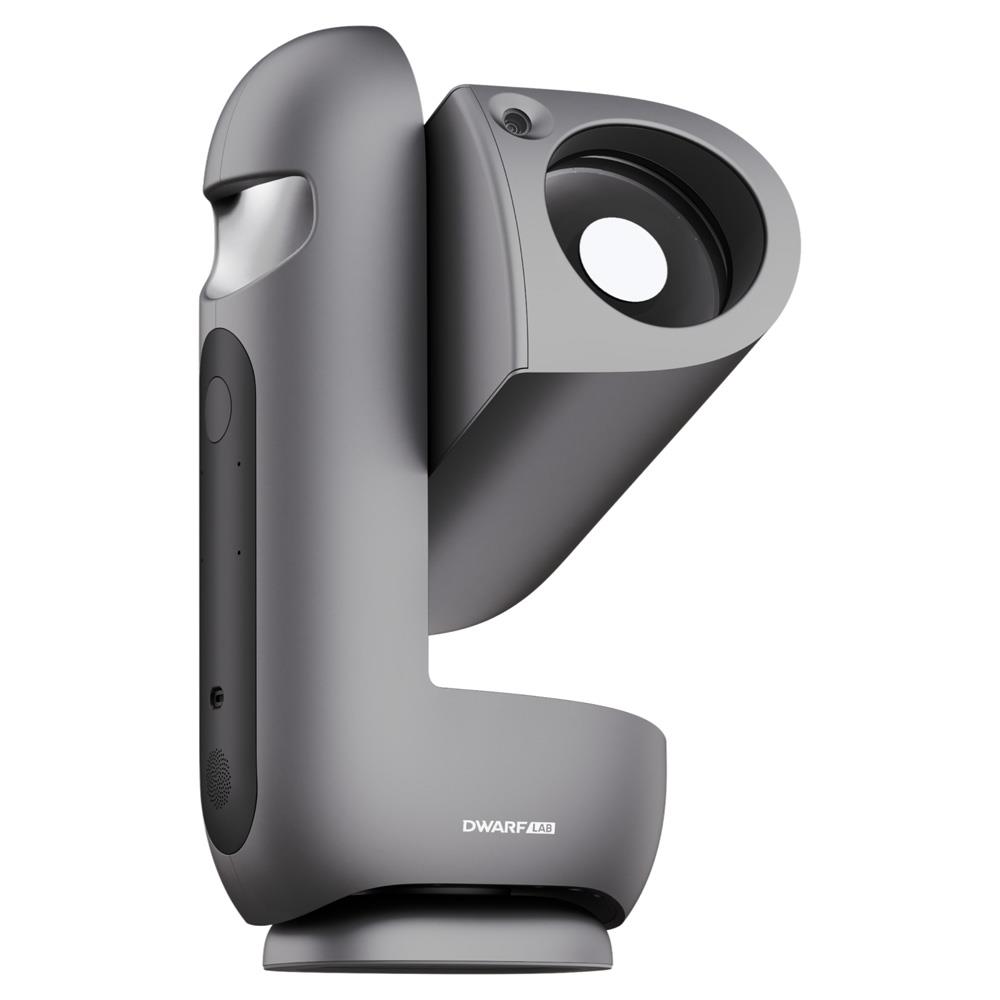

DWARFLAB Draco Smart Telescope SHO Edition
Just launched!
Product Code: 9800902M
Share this item:
A portable system pairing 90mm f/3.8 optics with dual 50MP sensors, automated capture and a four-filter internal wheel built for SHO narrowband imaging.
Pre-order today for first available UK stock. First deliveries from late Oct.
Earn 1499 Park Points
Key Features
- 90mm aperture, f/3.8 optics, 340mm native focal length
- Dual 50.33MP sensors (telephoto and wide angle)
- 2x2 pixel binning for improved low-light signal
- Built-in guiding and physical field derotation
- Exposures up to 300 seconds per frame
- Hα + O III and S II + O III dual-narrowband filters
- Automated SHO capture and colour mapping
- External magnetic OD5 solar filter
- Automatic calibration and live stacking
- Mosaic capture and scheduled sessions
- Auto and Pro modes with FITS/TIFF support
- Equatorial Mode, no separate mount needed
- 128GB internal storage
- 10,000mAh battery, up to 5 hours
Summary
The 90mm aperture and f/3.8 ratio gather light efficiently for galaxies, nebulae and star clusters, with separate modes for the Sun, Moon and planets. Two sensors serve different purposes: a 340mm native telephoto for distant targets, and a 23.3mm equivalent wide angle lens for the Milky Way, star trails and landscape shots.
Guiding, precision tracking and physical field derotation are built in, removing the need for separate hardware during longer or more demanding sessions. Where the SHO Edition differs is its internal filter set: alongside the Astronomy and Hα + O III filters, it adds S II + O III, allowing automated capture of all three narrowband channels for full SHO compositions. Solar imaging uses a supplied external magnetic OD5 filter rather than an internal one. Pro Mode and RAW output remain available for full manual control.
In More Detail
Optics
A folded optical path fits the 340mm native focal length into a body roughly 386mm long, keeping the unit compact despite its 90mm aperture. The f/3.8 ratio helps gather faint light efficiently for deep sky targets.
Cameras
In its primary mode, the telephoto camera provides a 1200mm 35mm equivalent field of view. For faint targets, 2x2 pixel binning merges four 1.197µm pixels into an effective 2.394µm pixel, yielding roughly 12MP output with improved signal to noise. Brighter Solar System subjects instead use native pixel readout to prioritise fine detail.
The second camera offers a 23.3mm equivalent wide view for the Milky Way, star trails and broader night sky scenes.
Guiding and Field Rotation
A monochrome guide camera tracks star movement to correct drift during exposures, while physical field derotation compensates for sky rotation. Combined with the precision drive, this supports single frames up to 300 seconds without external guiding or derotation hardware. The sensor can also rotate through the app to help frame elongated objects like galaxies and nebulae.
Cooling plus Dew Control
Built-in cooling manages sensor temperature to reduce thermal noise over extended sessions. Waste heat is redirected to warm the optics and limit dew formation. Rated operating range is -20°C to 45°C.
SHO Filters
The SHO Edition includes Hα + O III and S II + O III dual-narrowband filters, capturing all three emission channels needed for Hubble Palette compositions. The two work automatically in sequence, with separation, colour mapping and final composition handled by the system.
An Astronomy filter covers broader-spectrum targets such as galaxies and clusters. Solar imaging uses the supplied external magnetic OD5 filter, unlike the Standard Edition's internal solar filter.
Automation and Manual Control
Target finding, tracking, capture, calibration and stacking are handled automatically, cutting down the setup steps of a conventional rig. Auto Mode selects settings based on the chosen target; Pro Mode exposes manual control over exposure, gain and filter selection, with FITS/TIFF export for third-party processing. Calibration corrects thermal noise, vignetting, dust shadows and read noise during stacking.
Mosaics, Scheduling and Equatorial Mode
Mosaic capture stitches adjoining frames for targets larger than the standard field of view, extending coverage up to 1.8x in each direction. Sessions can be scheduled in advance for extended or overnight projects. Equatorial Mode uses the unit's own metal base and frame for added tracking stability, with in-app setup guidance, so no separate mount is needed.
Frequently Asked Questions
What’s the difference between the Standard and SHO Editions?
Both have the same optics, sensors and tracking system. The SHO Edition adds an S II + O III dual-narrowband filter for SHO imaging and uses an external magnetic solar filter, while the Standard Edition has a built-in OD5 solar filter.
What is SHO imaging?
SHO combines data from sulphur II (S II), hydrogen-alpha (Hα) and oxygen III (O III) emission lines. The system can capture and combine these channels automatically to create Hubble Palette-style images of emission nebulae.
Is it suitable for beginners?
Yes. Automated capture, calibration and SHO processing simplify what is traditionally a more complex imaging workflow, while Pro Mode and RAW output provide more control as experience grows.
What can I capture with this?
Galaxies, nebulae, star clusters, the Sun, Moon and planets, as well as the Milky Way, star trails, panoramas and time-lapses.
Does it need a separate equatorial mount?
No. Equatorial Mode uses the built-in base and frame instead.
Can images be processed separately?
Yes. FITS and TIFF export supports third-party processing alongside the automated workflow.
Specifications
|
Aperture |
90mm telephoto / 2.96mm wide-angle |
|
Native focal length |
340mm telephoto / 5.56mm wide-angle |
|
35mm equivalent |
1200mm telephoto (Astronomy Mode) / 1280mm telephoto (other modes) / 23.3mm wide-angle |
|
Focal ratio |
f/3.8 |
|
Telephoto sensor |
OV50Q40, 50.33MP, 1/1.3-inch |
|
Wide-angle sensor |
OV50E40, 50.33MP |
|
Guide sensor |
OS04C1B, 4.09MP monochrome |
|
Native pixel size |
1.197µm |
|
Binned pixel size |
2.394µm (2x2 binning) |
|
Output resolution |
Approx. 12MP with 2x2 binning |
|
Telephoto focusing distance |
25m to infinity |
|
Built-in filters |
Astronomy, Dark, Hα + O III dual-narrowband, S II + O III dual-narrowband |
|
Exposure range |
1/10,000 sec to 300 sec |
|
Tracking |
Built-in guiding, precision tracking and physical field derotation |
|
Movement |
225° tilt / 360° rotation |
|
Shooting modes |
Photo, Video, Astronomy, Panorama, Burst, Time-lapse |
|
File formats |
JPG, MP4, FITS, TIFF, PNG |
|
Storage |
128GB built-in |
|
Connectivity |
Wi-Fi, Bluetooth, NFC |
|
Compatible devices |
iOS and Android |
|
Battery |
Built-in 7.7V, 10,000mAh |
|
Battery life |
Up to 5 hours |
|
Charging |
USB-C, supports external USB power |
|
Mounting threads |
1x 3/8-inch / 2x 1/4-inch |
|
Operating temperature |
-20°C to 45°C |
|
Dimensions |
385.85 x 196.28 x 133.25mm |
|
Weight |
5.5kg |
What's in the Box
- DWARFLAB Draco Smart Telescope SHO Edition
- Aluminium-alloy tripod
- External magnetic OD5 solar ND filter
- USB-C data cable
- Cleaning cloth
