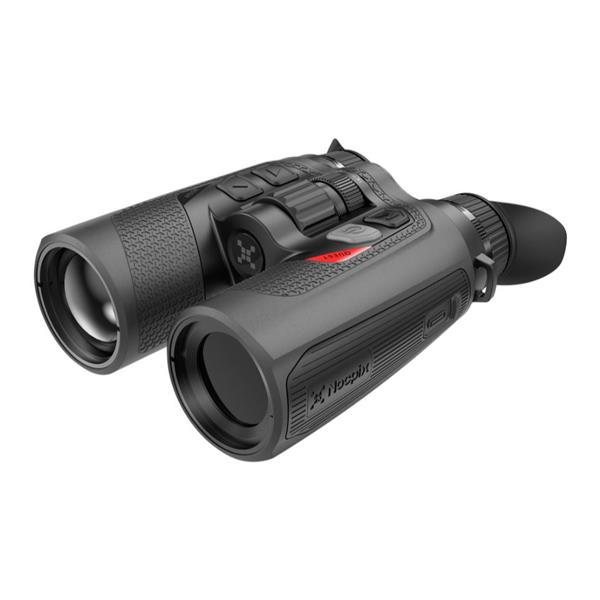

NocPix Quest H35R Thermal Binocular with Rangefinder
Product Code: 9770145H
Share this item:
The NocPix Quest H35R Thermal Binocular with Rangefinder is a dual-eye thermal optic with 640×512 sensor, 60Hz refresh rate and 1000m LRF for long-range wildlife observation.
NocPix Quest H35R Thermal Binocular with Rangefinder Summary
The NocPix Quest H35R is a thermal imaging binocular with an integrated laser rangefinder, combining dual-eye viewing with a 640×512 sensor and 60Hz frame rate. It sits within the QUEST range as a higher-resolution model designed for long-range thermal observation.
This model suits users who require extended detection capability and distance measurement, with a detection range of up to 1800m and LRF capability up to 1000m. A 35mm f/0.9 objective lens supports light collection, while the Vision+ system and Reality+ AI image processing maintain image clarity. The binocular format provides a more natural viewing position compared to monocular alternatives.
NocPix Quest H35R Key Features
- 640×512 thermal sensor with 12µm pixel pitch
- NETD ≤15mK thermal sensitivity for improved detail detection
- 60Hz frame rate for smooth image rendering
- Integrated laser rangefinder with 1000m distance measurement
- 1800m detection range for long-distance observation
- 35mm f/0.9 objective lens for thermal light collection
- 1920×1200 round display for dual-eye viewing
- 64GB internal storage for image and video capture
NocPix Quest H35R Thermal Binocular with Rangefinder In More Detail
Thermal sensor
The unit uses a 640×512 resolution thermal sensor with a 12µm pixel size. This combination provides a detailed thermal image while maintaining sensitivity across temperature variations. A NETD rating of ≤15mK supports detection of subtle temperature differences.
Frame rate
A 60Hz refresh rate ensures smooth image movement when tracking subjects or scanning environments. This reduces motion blur compared to lower frame rate systems.
Objective lens
A 35mm objective lens with an f/0.9 aperture supports thermal signal collection. This contributes to detection performance and image clarity at longer distances.
Detection range
The system supports detection distances up to 1800m. This allows subjects to be identified at extended ranges depending on environmental conditions.
Laser rangefinder
An integrated LRF provides distance measurements up to 1000m. This allows users to confirm subject distance without requiring a separate device.
Display system
The binocular uses a 1920×1200 resolution display with a round viewing format. This supports a dual-eye viewing experience and maintains a consistent image across both eyes.
Magnification range
Magnification ranges from 3x to 24x, allowing adjustment between wider field observation and more detailed viewing at distance.
Power system
The unit supports both replaceable and built-in battery operation. This allows continued use by swapping 18650 batteries while maintaining internal backup power.
Storage
64GB of internal storage allows capture and storage of images and video directly on the device.
Build and housing
The housing features a full rubber coating and waterproof construction, supporting use in outdoor environments.
Frequently Asked Questions
Is this binocular suitable for wildlife observation?
Yes, it supports long-range thermal detection and dual-eye viewing for observing wildlife in low light or darkness.
Does it include a built-in rangefinder?
Yes, it includes a laser rangefinder with a maximum distance of 1000m.
How far can it detect subjects?
It supports detection ranges up to 1800m depending on environmental conditions.
What type of battery does it use?
It uses replaceable 18650 batteries and also includes a built-in battery.
Is it a monocular or binocular?
It is a binocular design with dual-eye viewing.
Can it record images or video?
Yes, it includes 64GB of internal storage for capturing media.
Is it waterproof?
Yes, it features a waterproof housing for outdoor use.
NocPix Quest H35R Thermal Binocular Specifications
|
Type |
Binocular |
|
Range |
QUEST |
|
Sensor Resolution |
640 × 512 |
|
Pixel Size |
12µm |
|
Frame Rate |
60Hz |
|
NETD |
≤15mK |
|
Detection Range |
1800m |
|
Display Resolution |
1920 × 1200 |
|
Display Shape |
Round |
|
Minimum Magnification |
3x |
|
Maximum Magnification |
24x |
|
Laser Rangefinder Distance |
1000m |
|
Objective Lens |
35mm |
|
Aperture |
f/0.9 |
|
Eye Relief |
25mm |
|
Exit Pupil |
10mm |
|
Replaceable Battery |
Yes |
|
Built-in Battery |
Yes |
|
Storage |
64GB |
|
Vision+ System |
Yes |
What’s in the Box
- Quest series Thermal Imaging Binocular
- Portable bag
- 18650 Battery × 2
- Data cable
- Neck Strap
- Lens cleaning cloth
- Quick start guide
- Lens cap
- 18650 Battery charger
