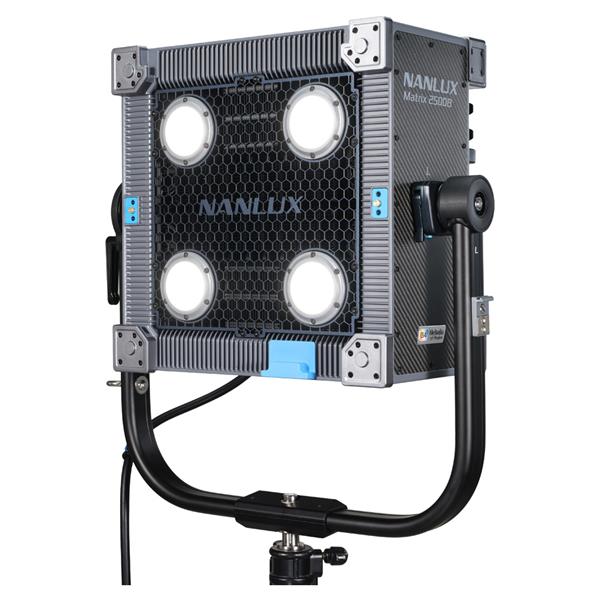

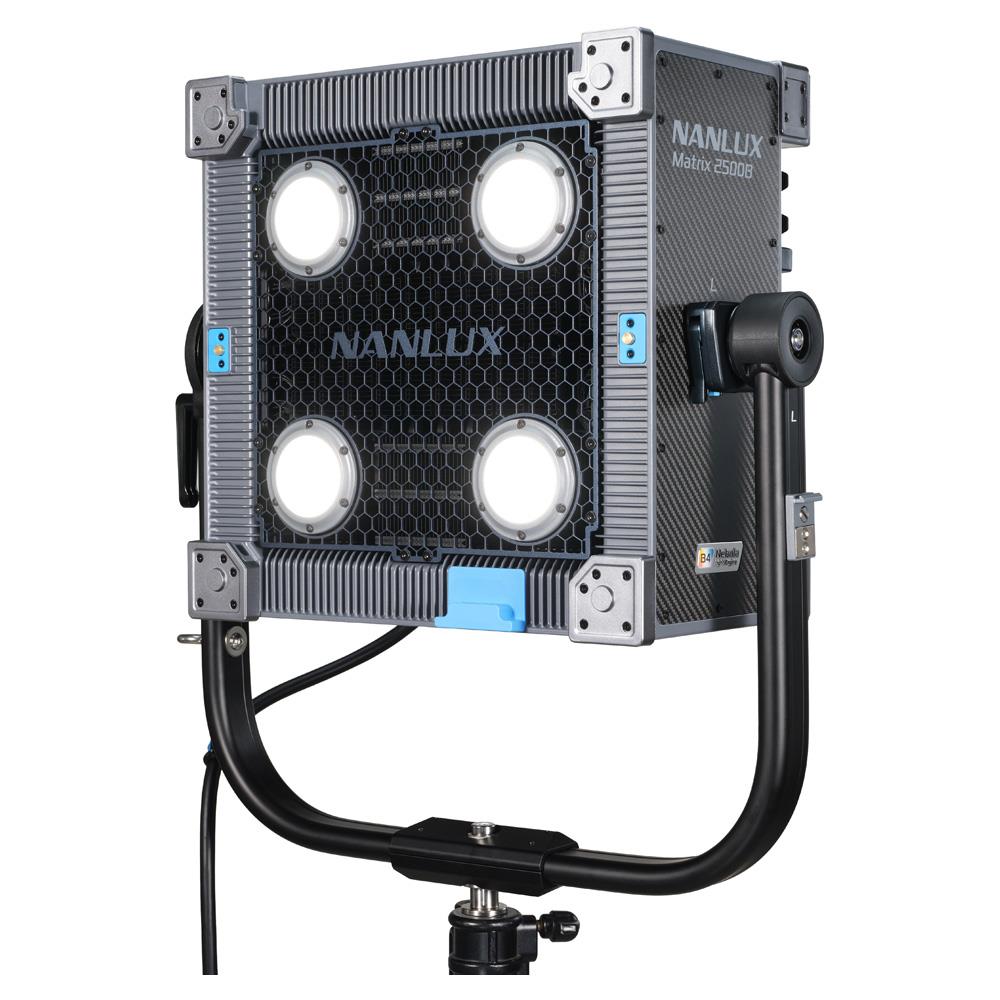

Nanlux Matrix 2500B with Flight Case
Product Code: 6352400F
Share this item:
The Nanlux Matrix 2500B with Flight Case is a 2500W bi-colour LED fixture with a Nebula B4 light engine, IP66 protection and multi-unit array capability for large-scale productions.
Nanlux Matrix 2500B with Flight Case Summary
The Nanlux Matrix 2500B is a high-output bi-colour LED fixture for professional film, television, broadcast and virtual production environments. Its integrated four-head configuration combines 2500W of output with Nanlux's Nebula B4 light engine, covering a 2,700K to 6,500K colour temperature range with green and magenta adjustment.
The Matrix 2500B operates individually or as part of larger multi-unit arrays, allowing productions to build powerful, even illumination across large shooting spaces. The included flight case provides protection during transport between locations and studio environments.
Nanlux Matrix 2500B with Flight Case Key Features
- 2500W integrated four-head LED fixture
- Nebula B4 bi-colour light engine
- 2,700K to 6,500K colour temperature range
- 103,000 lux at 3m with FL-MT25 Fresnel lens
- Multi-fixture array capability
- IP66-rated weather-resistant construction
- Wired and wireless professional control
- Motorised Fresnel lens support
Nanlux Matrix 2500B with Flight Case In More Detail
Built Around Large-Scale Lighting Arrays
The Matrix 2500B has multi-fixture deployment as a core part of its design. Multiple units can be mounted together using dedicated frames, allowing productions to build powerful lighting arrays while maintaining even beam characteristics across the combined fixture. This approach supports dense, consistent illumination for large sets and virtual production stages.
Nebula B4 Light Engine
The Matrix 2500B uses Nanlux's Nebula B4 light engine, combining four types of white LEDs for accurate colour reproduction and efficient output. It covers 2,700K to 6,500K with ±80 green and magenta adjustment, allowing crews to match existing lighting conditions while retaining the efficiency of a dedicated white-light system. Average CRI and TLCI ratings of 98 support accurate colour reproduction across professional capture workflows.
High Output In A Compact Footprint
The Matrix 2500B measures 40 × 40 × 23.5cm. Paired with the FL-MT25 Motorised Fresnel Lens, it achieves up to 103,000 lux at 3m at 5600K. That combination of output and compact dimensions allows deployment where larger traditional fixtures would be harder to rig or transport.
For Outdoor Productions
A one-piece magnesium alloy housing with IP66 rating protects against dust and weather while keeping weight manageable for location work. The weather-resistant construction reduces concerns about changing conditions during extended outdoor shooting days.
Advanced Cooling And Control
A front-to-rear airflow system maintains performance during continuous operation, particularly when units are grouped into arrays. Four fan modes let crews balance cooling against noise requirements. Control options include onboard controls, NANLINK App 2.0, DMX/RDM, CRMX, Art-Net and sACN, with NFC support for rapid setup across multiple fixtures.
Frequently Asked Questions
What is the difference between the Nanlux Matrix 2500B and Matrix 2500C?
The Matrix 2500B is a bi-colour fixture covering 2,700K to 6,500K with green and magenta adjustment. The Matrix 2500C adds full RGB colour control, additional lighting modes and an extended 1,000K to 20,000K colour temperature range.
How bright is the Nanlux Matrix 2500B?
The Matrix 2500B produces up to 103,000 lux at 3m at 5600K when used with the FL-MT25 Motorised Fresnel Lens at 16°.
What is a Matrix lighting array?
A Matrix array combines multiple fixtures into a unified lighting system using dedicated mounting frames, allowing units to be positioned closely together to create a dense, evenly illuminated source across large shooting areas.
Can multiple Matrix fixtures be linked together?
Yes. Multiple units can be synchronised through dedicated power and control connections, simplifying setup and operation across larger arrays.
Is the unit suitable for outdoor productions?
Yes. The IP66-rated magnesium alloy housing provides protection against dust and weather for professional outdoor use.
What control systems does it support?
The fixture supports onboard controls, NANLINK App 2.0, DMX/RDM, CRMX, Art-Net, sACN and NFC configuration.
What’s in the Box
- Nanlux Matrix 2500B Fixture
- FL-MT25 Motorized Fresnel Lens
- Flight Case
- Power Cable
- Documentation
