Canon EOS R5 Mirrorless Digital Camera Body
Canon EOS R5 Mirrorless Body Summary
The EOS R5 full-frame mirrorless body is the undisputed king of Canon’s mirrorless camera range which delivers a number of groundbreaking industry firsts. It comes packed with features for professional or advanced enthusiasts who shoot both movies and stills. The body shares cutting edge technology with the flagship 1D X Mk III DSLR ensuring the very latest features are now also available for mirrorless users. A 45 megapixel CMOS sensor is cable of adapting to any style of content creation with ultra high resolution detail which is powered by DIGIC X processing. Action, sports and wildlife photographers enjoy high speed continuous shooting with 20fps electronic and 12fps mechanical shutter.
Eye, Face as well as Animal Eye are acquired within 0.05 seconds (when using particular RF lenses) utilising deep learning from the updated Dual Pixel CMOS II autofocus system. Even birds in flight can be tracked with full coverage from 5940 manually selectable focus areas covering the entire frame. ISO ranges span from smooth noise-free ISO 100 to ISO 51200 and AF works down to -6EV for near complete dark capabilities.

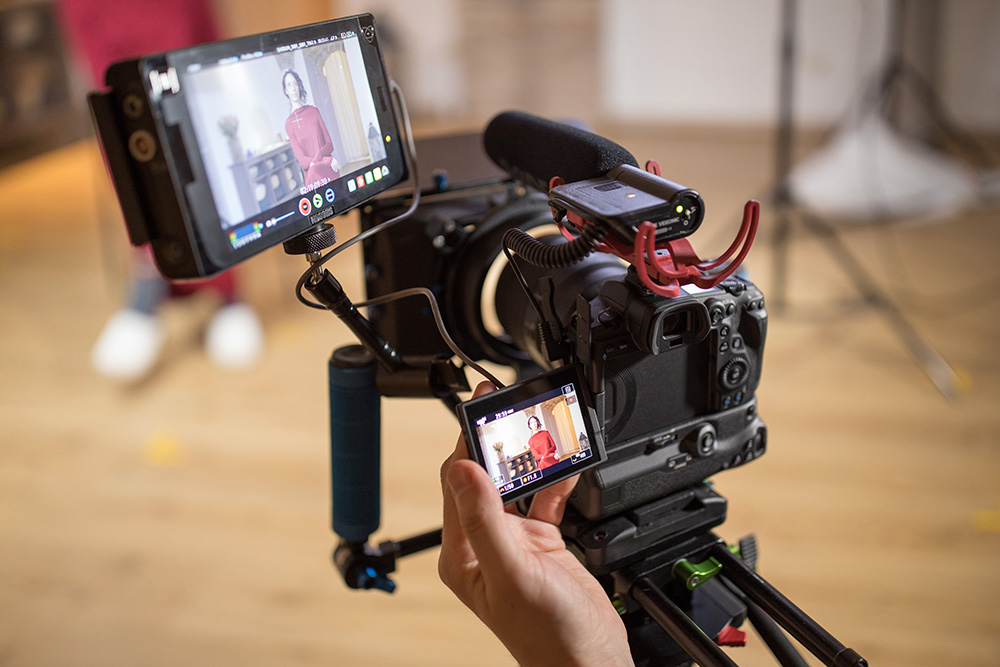

Movie capture delivers significant advantages for professional videographers with the world’s first 8K 30p 12bit RAW full-frame video in a 35mm camera. Un-cropped high speed 4K can also be captured at up to 120p for ultra smooth slow motion playback. 5 axis in-body stabilisation delivers up to 8 stops of compensation with certain RF lenses providing users with another class leading shooting advantage. Lens options are limitless with 15 native RF lenses currently available, together with any number of Canon’s huge catalogue of EF and EFS lenses which can be employed with optional lens mount adaptors.
The EOS R5 is weather sealed for outdoor photography and manufactured from durable magnesium alloy providing excellent rigidity and heat dissipation. This allows the camera to record video for a maximum duration of 29min 59sec or 7min 29sec in high speed mode.
High capacity data is recorded using an ultra fast CFexpress card in one slot, whilst the second slot houses an SD card. Power is provided by a new LP-E6NH Lithium-Ion Battery delivering a 17% increase in power over the previous LP-E6N battery, for around 490 shots with the high resolution LCD. Conveniently the battery compartment is backwards compatible with the previous battery pack. Users can deliver and share their content easily with built-in WiFi, USB-C or when connected to a smartphone. Continue reading below for yet more feature upgrades Canon have included with this industry pioneering body.
Canon has pulled out all of the stops with their latest flagship mirrorless camera and the EOS R5 fulfils the needs of professionals with class leading video and stills image capture. The 45 megapixel resolution is ample for gallery quality prints and 8K 30p RAW video is a world first in a 35mm sensor body.
Any style of photography is catered for, including low noise for architecture, fine art or landscape and ultra fast shooting for sports, action and wildlife. Portrait, street and wedding photographers will also benefit from a deep learning autofocus system which recognises subjects instantly, acquiring eye, face or body depending on the situation. Blistering continuous shooting speeds in both mechanical and electronic shutter ensure every moment is captured with the full coverage AF system. With up to 180 RAW and 350 JPGS photographers can shoot through entire action sequences capturing every single perfect moment.
Video recording is both advanced and flexible providing complete versatility starting with the impressive headline 8K 30p. Movie makers also get 120p in full-frame 4K for spellbinding slow motion effects, zebra patterns and 12bit RAW capability. Adding personal styles during edits is simple with Canon log 10bit HEVC and all of this is processed by the high speed DIGIC X engine.
A CFExpress card with a second SD card slot are most welcome, catering for the high volumes of data being captured. In-body stabilisation provides between 6.5 and 8 EV stops of compensation depending on which RF lens is being used for world class hand-held advantage. High quality materials and a weather sealed body add to the long list of pro features ensuring many years of service from this mirrorless body. The EOS R5 is amongst the most powerful content creation tools available today thanks to innovative upgrades throughout virtually every element of the camera.
|Canon EOS R5 First Look|
Canon EOS R5 in More Detail:
36 x 24 mm CMOS with approx. 45 megapixels
Built-in/Fixed Low-Pass Filter with EOS integrated sensor cleaning system
5 axis sensor shift IS for up to 8-Stops when used with compatible lenses
IMAGE PROCESSOR: DIGIC X
Dual Pixel CMOS AF II
100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes
100% horizontal and 90% vertical with manual selection and large zone modes
EV -6 AF working range
AF Modes: One Shot Servo AF. AI Focus AF (in A+ Scene Intelligent Auto mode)
AF Point Selection: Automatic selection: Face + tracking. 1053 Available AF areas when automatically selected
Manual selection: 1-point AF with 5940 (stills) / (4500) movie AF positions available
Manual selection: AF point Expansion surrounding points
Manual selection: Zone AF (all AF points divided into 9 focusing zones)
Manual selection: Large Zone AF (Vertical) Manual selection: Large Zone AF (Horizontal)
Metering modes: Real-time with image sensor, 384-zone metering.
Evaluative metering (linked to All AF points)
Partial metering (approx. 6.1% of viewfinder at centre)
Spot metering: Centre spot metering (approx. 3.1% viewfinder at centre)
AF point-linked spot metering not provided. Centre weighted average metering
Exposure Compensation +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
ISO Sensitivity: Auto 100-51200 (in 1/3-stop or 1 stop increments) ISO can be expanded to L:50, H1:102400
Electronically-controlled focal-plane shutter and Electronic shutter function on sensor
Speed 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb mode.
0.5-inch OLED colour EVF with 5.69 Million dots (1600x1200) at Approx. 100% coverage
Magnification Approx. 0.76x with available -4 to +2 m-1 diopter correction
Depth of field preview via customised button
8.01cm (3.15’’) Clear View LCD II, with approx. 2.1million dots covering approx. 100%
Viewing Angle horizontal / vertical Approx. 170°
Anti-smudge coating and reinforced glass
Manual brightness and tone adjustment
E-TTL II Auto Flash, Metered Manual modes
X-sync 1/200sec mechanical shutter / 1/250th electronic 1st curtain
Flash Exposure Compensation +/- 3EV in 1/3 increments with EX series Speedlite flashes
Hot Shoe AND PC terminals
External Flash Compatibility E-TTL II with EX series Speedlite, wireless multi-flash support
Single, Continuous High+, Continuous High, Continuous Low, Self timer (2s+remote, 10s+remote)
Continuous Shooting Max. Approx. 12fps. with Mechanical shutter or 20fps with electronic shutter speed maintained for 350 JPEG or 180 RAW images
Built in Interval timer
Still Image Type JPEG: 2 compression options
RAW: RAW, C-RAW 14bit (14-bit A/D conversion with Mechanical shutter and Electronic 1st Curtain, 13-bit A/D conversion with H+ mode, 12-bit A/D conversion with Electronic shutter, Canon original RAW 3rd edition).
HEIF: 10bit HEIF is available in HDR shooting
Complies with Exif 2.31 and Design rule for Camera File system 2.0 and Digital Print Order Format
Image Size JPEG/ HEIF: 3:2 ratio (L, RAW, C-RAW) 8192x5464, (M1) 5808x3872, (S1) 4176x2784, (S2) 2400x1600
1.6x crop (L) 5088x3392, (S2) 2400x1600
EOS Movie Recording
Movie Type MP4 Video: 8K DCI/ UHD (17:9 / 16:9) 4K DCI/ UHD (17:9 / 16:9), Full HD
8K/4K/ Full HD: AVC/H.265 variable (average) bit rate, Audio: Linear PCM
4K/ Full HD: MPEG4 AVC/H.264 variable (average) bit rate, Audio: Linear PCM
8K RAW: 12bit CRM Audio: Linear PCM
8K DCI (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps) RAW, intra or inter frame
8K UHD (16:9) 7680 x 4320 (29.97, 25, , 23.98 fps) intra or inter frame
4K DCI (17:9) 4096 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) intra or inter frame
4K UHD (16:9) 3840 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame
Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25, 23.98fps) intra or inter frame
Full HD (16:9) 1920 x 1080 HDR (29.97, 25 fps) inter frame
Full HD (16:9) 1920 x 1080 (29.97, 25) light inter frame
Movie Length Max duration 29min 59sec. (excluding High Frame Rate movies).
No 4GB file limit with exFAT formatted SD card
High Frame Rate Movie MOV Video: 4K – DCI 4096x2160 or UHD 3840x2160
UHD at 100fps or 119.9fps Recorded as 1/4-speed slow motion movie
Single scene maximum recording up to 7min 29sec.
Built-in mono microphone
HDMI Display Output to external monitor only (output of images and shooting information, images are recorded to the card)
Camera screen and External Monitor output (Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)
Uncompressed YCbCr 4:2:2, 8-bit or 10-bit, sound output via HDMI is also possible
Focusing Dual Pixel CMOS AF II with Eye/Face Detection and Animal Tracking AF, Movie Servo AF
Manual Focus with Peaking and Focus Guide available
SuperSpeed USB 3.1 Gen 2 USB C connector for computers
Wi-Fi Wireless LAN (IEEE802.11a/b/g/n/AC) (5Ghz /2.4 GHz), with Bluetooth 4.2 support
Features supported - EOS Utility, Smartphone, Upload to image.canon, Wireless printing
Other HDMI micro out (Type D), External Microphone In/Line In (Stereo mini jack),
Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal) Flash sync socket
Rechargeable Li-ion Battery LP-E6NH (supplied) or LP-E6N
Battery life With LCD Approx. 490 shots (at 23°C)
With LCD Approx. 320 (at 23°C)
Canon EOS R5 Sample Images
Canon EOS R5 with RF 15-35mm lens 28mm. 1/200th sec. ISO 100. f/7.1
Canon EOS R5 with RF 15-35mm lens 15mm. 1/320th sec. ISO 400. f/9
Canon EOS R5 with RF 100-500mm lens 159mm. 1/2000th sec. ISO 10000. f/6.3
Canon EOS R5 with RF 15-35mm lens 15mm. 1/1300th sec. ISO 200. f/2.8
Canon EOS R5 with RF 100-500mm lens 254mm. 1/4000th sec. ISO 10000. f/6.3
|What else is included in the box?|
|Sensor Type||Full-frame CMOS|
|ISO range||100-51200 (expandable to L:50 H1:102400)|
|Focus points||Dual Pixel CMOS AF II - 5940 Manual Select Areas|
|Continuous shooting||12fps mechanical, 20fps electronic|
|Video resolution||MP4: 8K / 4K / Full HD|
|LCD Screen||8cm Clear View LCD II (approx. 2.1 million dots)|
|Viewfinder||0.5'' OLED colour EVF - 5.69 million dots|
|Wireless connectivity||Wireless LAN (IEEE802.11a/b/g/n/AC) (5Ghz /2.4 GHz)|
|GPS||GPS receiver (accessory)|
|Lens compatibility||RF Mount Mirrorless|
|Storage type||1x CFexpress type B. 1x SD/SDHC/SDXC and UHS-II|
|Dimensions||135.8mm x 97.5mm x 88mm|
|Weight||Approx. 650g. (738g. with card and battery)|
