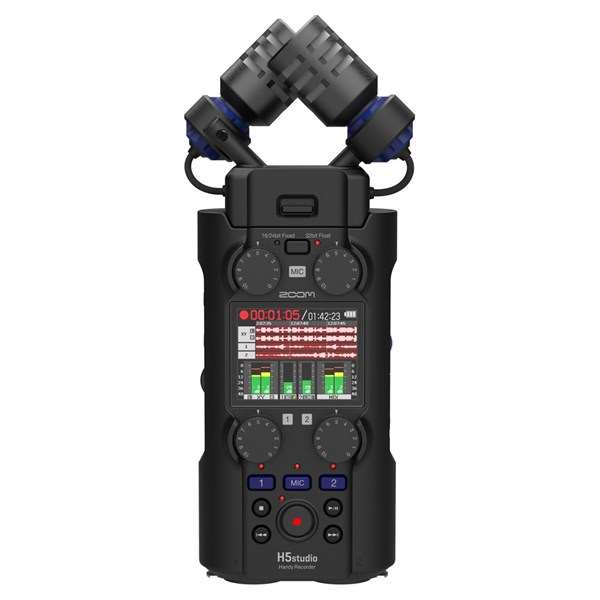

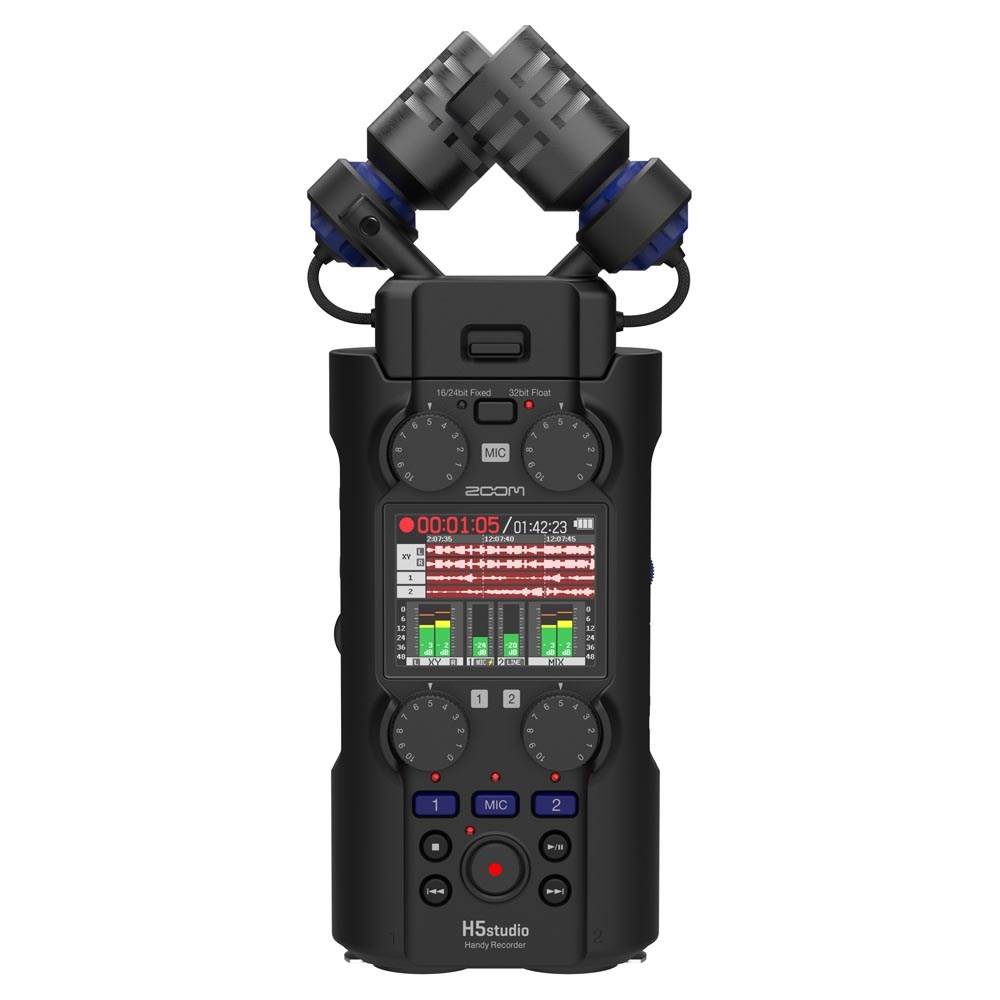

Zoom H5 studio 32-Bit Float Handy Recorder
Product Code: E842017H
Share this item:
The Zoom H5 studio 32-Bit Float Handy Recorder features the largest mics ever on a Handy recorder, which provides flawless audio quality for content creators with stunningly clear microphones, preamps, and 32-bit float.
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
Zoom H5 studio 32-Bit Float Handy Recorder Summary
The Zoom H5 studio 32-Bit Float Handy Recorder is a portable audio recorder for professional audio capture in the studio. It features Zoom’s F-series studio-grade preamps, dual AD converters, and 32-bit float recording to achieve flawless, distortion-free audio with no clipping.
The compact recorder captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz and includes the largest microphones ever used on a handy recorder. The mics measure 19.4 mm and are capable of handling up to 140 dB SPL.
Larger capsules deliver impressive depth, wide dynamic range, and rich detail across the whole frequency spectrum. Dual XLR/TRS combo inputs support +48 V phantom power, while a 3.5 mm stereo input and capsule expansion system broaden its creative scope. The recorder doubles as a 4-in/2-out USB audio interface, working with Mac, Windows, iOS, and Android devices.
With its improved RF shielding, intuitive colour LCD, and timecode support via the optional TCA-1 adapter, the H5 studio is a powerful solution for solo creators and professional teams. It runs for up to 15 hours on four AA batteries and stores files on microSDXC cards with up to 2 TB capacity, which is ideal for extended scenes.
Zoom H5 studio Key Features
- Records in 32-bit float with dual AD converters
- Features 19.4 mm condenser microphones with 140 dB SPL
- Studio-grade preamps deliver ultra-low noise performance (-127 dBu EIN)
- Captures up to six tracks (four isolated tracks plus stereo mix) at up to 192 kHz
- Includes RF shielding to prevent interference
- Supports interchangeable Capsule System 3.0
- Two locking XLR/TRS inputs with +48 V phantom power
- Functions as a 4-in/2-out USB audio interface
- Provides a headphone output, line out for camera connection, and speaker
- Up to 15 hours runtime on four AA batteries or via USB power
Zoom H5 studio 32-Bit Float Handy Recorder in More Detail
Studio Quality Sound
The H5 studio Handy Recorder provides creators with studio-grade audio capture in a portable form. With large microphones, professional preamps and 32-bit float recording, it delivers seamless, high-quality sound recording.
The Largest Mics Ever on a Handy Recorder
Its 19.4 mm microphones capture audio with excellent frequency response, handling up to 140 dB SPL with wide dynamic range. The increased capsule size produces recordings with greater depth and clarity.
F-Series Power, Now in Your Hands
The H5 studio uses Zoom’s F-series preamps for cleaner audio with a -127 dBu EIN noise floor. Dual AD converters and 32-bit float provide 132 dB of dynamic range, capturing quiet and loud sounds without noise or distortion.
Complete Control, Zero Clipping
The recorder supports both 32-bit float and 16/24-bit formats. 32-bit float prevents clipping but can require post-production, while 16/24-bit removes that need but requires careful gain adjustment. The H5 studio combines both, with 32-bit float and dedicated gain knobs to ensure no clipping and no need for post work.
Six Tracks Up to 192 kHz
Capture up to six tracks simultaneously (four isolated tracks plus a stereo mix) at sample rates up to 192 kHz.
Protect Your Sound
RF shielding prevents interference from smartphones and Wi-Fi routers, keeping recordings clean in any environment.
Advanced Limiters
“Look-ahead” limiters anticipate overloads and prevent distortion before it reaches the track.
Inputs
Two locking XLR/TRS inputs support +48 V phantom power and +4 dBu line level. A 3.5 mm stereo jack with plug-in power is also included.
Next Generation Capsule System
The H5 studio’s 3.0 Capsule System supports 32-bit float recording and provides flexibility to use different microphone capsules as needed. Compatible capsules include SSH-6e and EXH-6e.
Capsule Carousel
Interchangeable capsules expand recording possibilities for different setups and environments.
Waveforms and Levels
A full-colour LCD screen displays input levels and real-time waveforms, allowing easy monitoring and adjustment while recording.
Outputs
- Headphone Out. A 20 mW headphone output provides clear monitoring or playback in any environment.
- Line Out. A 3.5 mm stereo output connects directly to a camera for easy audio-video sync.
- Onboard Speaker. The built-in 250 mW speaker allows instant preview of recordings on the spot.
USB Audio Interface
The H5 studio functions as a 4-in/2-out USB audio interface for Mac, Windows, iOS and Android. It supports both 32-bit float and 16/24-bit recording, enabling live streaming while simultaneously recording a backup to microSD.
Sync Smarter
The optional TCA-1 timecode adapter can generate and output timecode, or jam to an external clock. It also receives wireless timecode from the ATOMOS UltraSync BLUE. (TCA-1 or BTA-1 required.)
Wireless Control
Using the Zoom Handy Control & Sync app for iOS, you can remotely control multiple recorders, manage start/stop recording, and synchronise timecode. Compatible with H2essential and H5 studio models.
Premium Features
The device includes mono mode for interviews and vocals, a low-cut filter to reduce low-frequency noise, normalisation, and exporting audio files in 24-bit or 16-bit WAV formats. Variable speed playback (0.5–1.5×) and A-B repeat are supported, along with a recording start tone for DSLR audio alignment.
Up to 2 TB of Storage
The recorder accepts microSDHC or microSDXC cards up to 2 TB (sold separately).
Power Up
Operates for up to 15 hours on four AA alkaline batteries. It can also be powered via USB or an AC adapter (sold separately, AD-17).
Accessibility
Menus include audible descriptions for visually impaired users, accessible through the built-in speaker or headphones. Supported languages are English, Spanish, French, Japanese, German, Italian and Chinese.
Accessory Pack
An optional APH-5s accessory pack includes a padded shell case, hairy windscreen, AC adapter and USB-C cable.
What’s in the box
- Zoom H5 studio 32-Bit Float Handy Recorder
